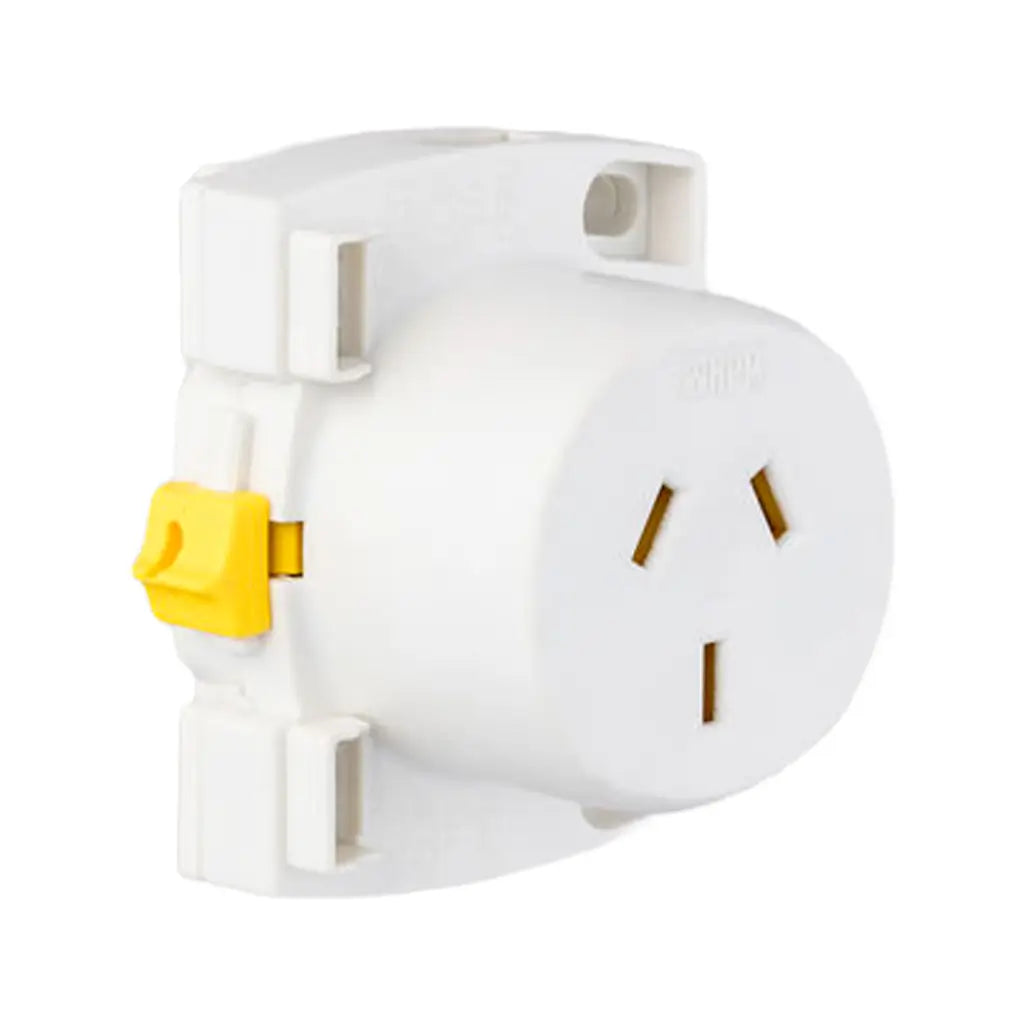

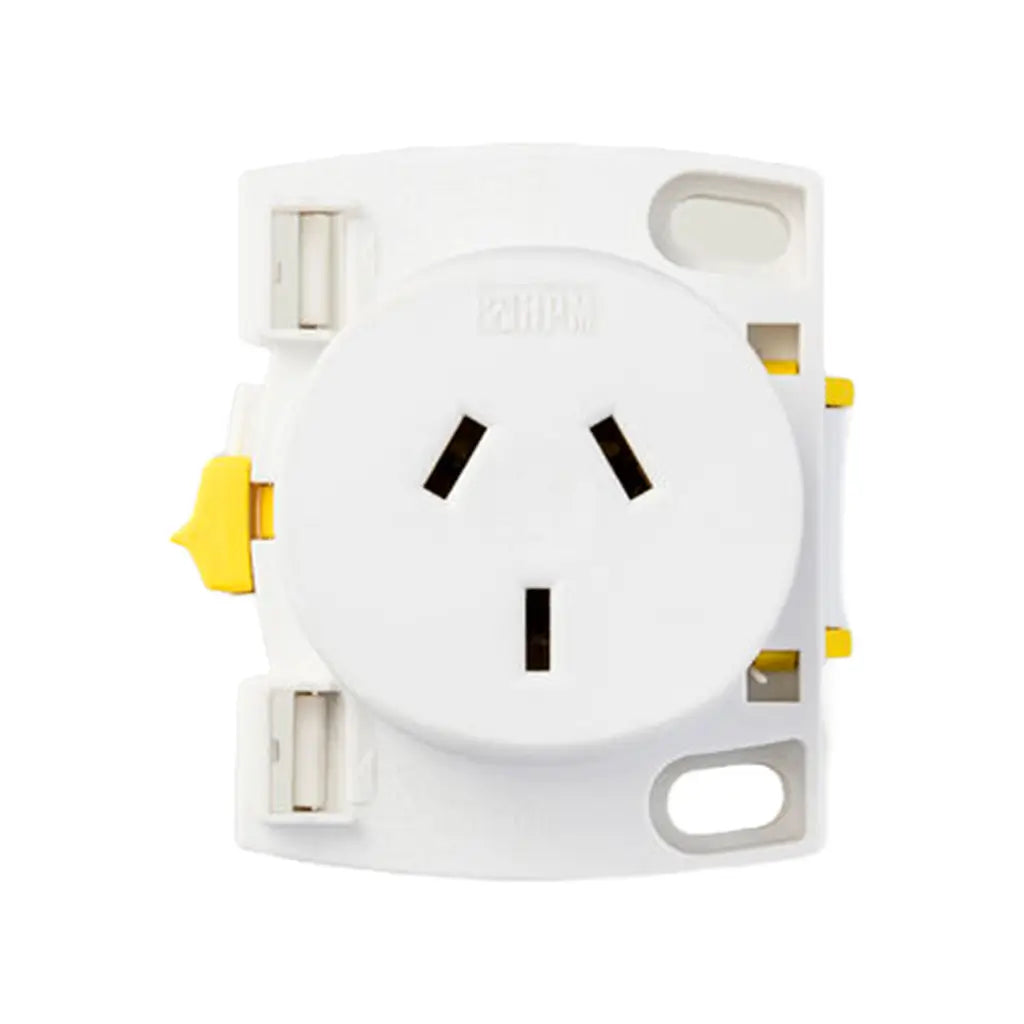

The HPM Quick Connect Plug Base (CD37QC) is a 10A surface-mount plug base designed for fast, reliable, and safe electrical connections without the need for traditional wiring tools. Using insulation-piercing technology, it connects directly to flat TPS cable — compatible with 1.0mm² solid conductor and 1.5mm² and 2.5mm² standard conductors — making it ideal for quick installations in residential and commercial applications. Fully compliant with AS/NZS 3112:2017 and IEC 60669-2-3, and meets the updated insulation-piercing terminal requirements of AS/NZS IEC 60998.2.3.
Key Features
- Quick connect insulation-piercing technology — no traditional wiring tools required
- Compatible with 1.0mm² solid and 1.5mm² / 2.5mm² standard flat TPS conductors
- Surface mounting for easy installation
- Fully compliant with AS/NZS 3112:2017 and IEC 60669-2-3
- Reliable, safe, and fast installation
Specifications
- Nominal Voltage: 230–240V AC
- Nominal Current: 10A
- Flat TPS Compatibility: 1.0mm² solid conductor, 1.5mm² and 2.5mm² standard conductor
- Mounting Type: Surface
- Cut-out Size: 65mm
- Dimensions (W x H x D): 60 x 43 x 65mm
- Safety Standard: AS/NZS 3112, IEC 60669-2-3
- SKU: CD37QC
-
SDS or PDSNone
