Pilot Filament B15 24V 3W W/W LED Light Bulb Opal

Double Bay Hardware | SKU: 6445

$24.90

Tax included Shipping calculated at checkout.

Pickup available at Double Bay Hardware

Usually ready in 1 hour

Light Bulb Fittings

The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.

Check fitting guide

Colour Temperature

Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.

Check details of colour temperature

Equivalent Wattages Between Different Light Bulbs

As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.

Check table chart

80%

Cutting electricity costs by up to 80% compared to incandescent bulbs.

15,000+

Extremely long lasting time between 15,000 to 25,000 hours. Up to 25 times longer than incandescent bulbs.

⚠️ Important: This is a 24V low voltage bulb and requires a compatible 24V transformer or power supply. It will not work with standard 240V mains voltage.

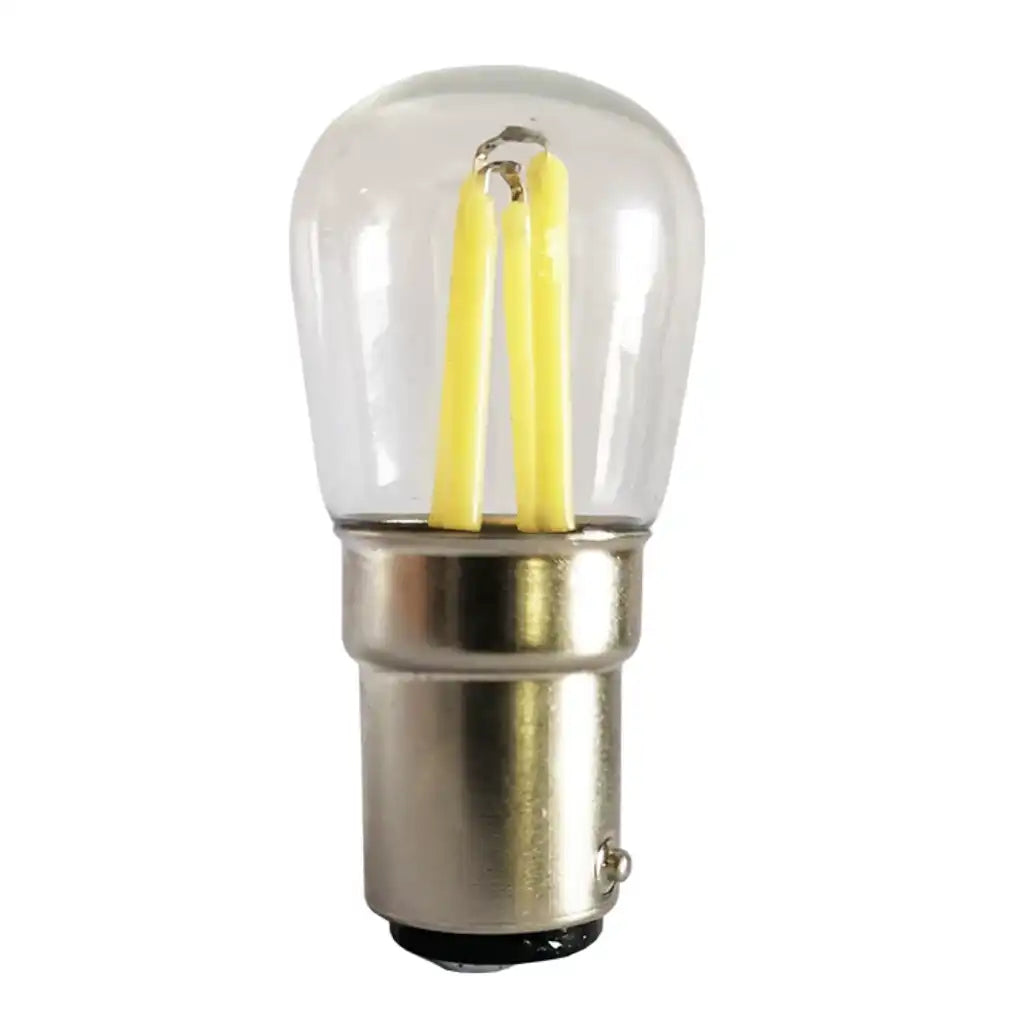

The Pilot Filament LED Light Bulb is a compact 24V low voltage bulb designed for pilot lighting, indicator applications, and decorative low voltage fittings. Delivering 200 lumens of warm white 2700K light at just 3W, it features an opal finish for soft, diffused illumination and a wide 360° beam angle for even light distribution.

With a B15 small bayonet cap base, full glass construction, and a 20,000-hour rated lifespan, this non-dimmable bulb provides long-lasting, reliable performance in any compatible 24V B15 lamp holder. Its compact 22mm x 50mm form factor makes it ideal for small decorative fittings and low voltage lighting systems.

Key Features

24V low voltage — suitable for low voltage lighting systems
Compact 22mm x 50mm form factor
Opal finish for soft, diffused light output
Wide 360° beam angle for even illumination
3W LED — 200lm warm white 2700K output
B15 small bayonet cap base
20,000-hour rated lifespan

Specifications

Fitting/Base: B15 (Small Bayonet Cap / SBC)
Wattage: 3W
Voltage: 24V (requires compatible 24V transformer or power supply)
Lumen Output: 200lm
Colour Temperature: 2700K (Warm White)
Beam Angle: 360°
CRI: 80
Finish: Opal
Dimmable: No
Rated Average Life: 20,000 hours
Dimensions: 22mm diameter x 50mm length

Payment & Security

Safe & Secure

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Buy now pay later with afterpay

Frequently Asked Questions

Does this bulb work on 240V mains power?

No. This is a 24V low voltage bulb and requires a compatible 24V transformer or power supply. It will not work on standard 240V mains voltage and must not be connected directly to mains power.
