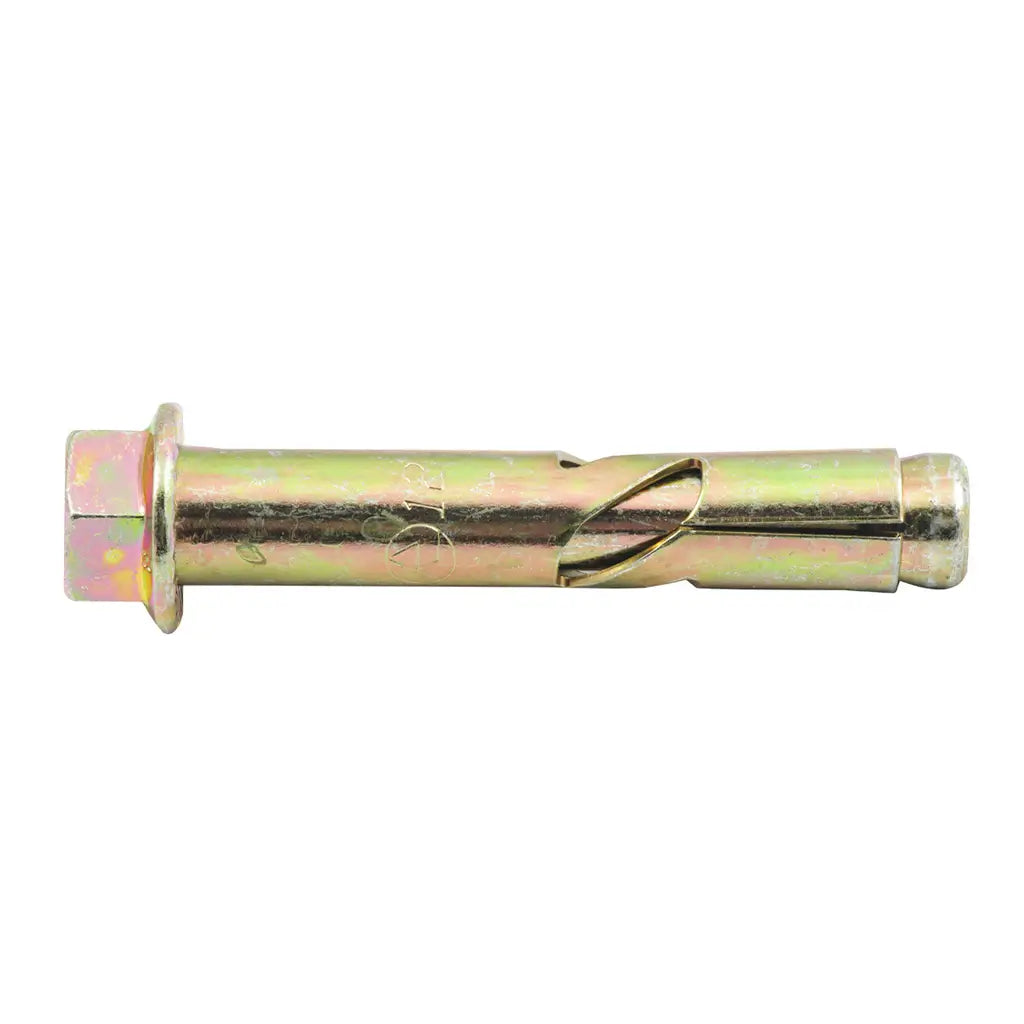

Ramset 12X70mm Dynabolt Hex Head DP12070

The Ramset DynaBolt Plus Sleeve Anchor delivers reliable medium-duty anchoring performance with torque-controlled expansion technology. Engineered with an integrated pull-down section, this anchor is designed for secure fastening of timber and steel fixtures to concrete, brick or block, providing professional-grade holding power for a wide range of construction and installation applications.

Measuring 12mm in diameter and 70mm in length with a hex head design and gold passivated finish, this anchor features a patented expansion sleeve that closes gaps of up to 5mm. The innovative pull-down mechanism induces clamp load on the fixture, delivering improved security and stability. As a fully assembled through-fixture anchor, the DynaBolt Plus eliminates assembly, marking out and re-positioning of fixtures, making installation fast and easy with standard tools.

Key Features:

• Torque-controlled expansion for consistent, reliable performance
• Patented expansion sleeve closes gaps up to 5mm
• Integrated pull-down section induces clamp load for improved security
• Fully assembled through-fixture design for fast, easy installation
• Eliminates assembly, marking out and re-positioning of fixtures
• Suitable for timber and steel fixtures to concrete, brick or block
• Hex head design for easy installation with standard tools
• Gold passivated finish for corrosion resistance

Specifications:

• Diameter: 12mm
• Length: 70mm
• Head Type: Hex Head
• Finish: Gold Passivated
• Drill Size: 12mm
• Suitable Substrates: Concrete, brick, block
• Product Code: DP12070
