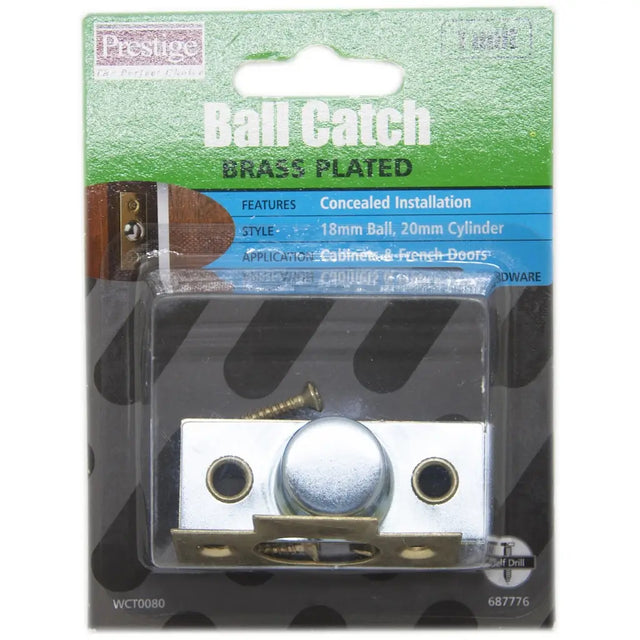

Prestige Ball Catch Brass Plated 18mm Ball, 20mm Cylinder WCT0080

The Prestige Ball Catch offers concealed, reliable closure for cabinets and French doors with its spring-loaded ball mechanism. Featuring an 18mm brass-plated ball and 20mm cylinder, this catch provides smooth, positive engagement that keeps doors securely closed while remaining completely hidden from view for a clean, professional finish.

Designed for edge-mounted installation, the ball catch installs discreetly into the door edge with the strike plate recessed into the frame. The brass-plated construction delivers corrosion resistance and durability, while the spring-loaded ball ensures consistent holding power that won't loosen over time, making it ideal for both residential and commercial cabinetry.

Key Features:

• Concealed installation for invisible, professional appearance
• 18mm brass-plated ball with 20mm cylinder
• Spring-loaded mechanism for reliable, consistent hold
• Suitable for cabinets and French doors
• Corrosion-resistant brass-plated finish

Specifications:

• Ball size: 18mm
• Cylinder diameter: 20mm
• Installation depth: 12mm (cylinder)
• Finish: Brass plated
• SKU: WCT0080
• Brand: Prestige

Installation Instructions:

• Position ball catch and strike in desired location and verify function. Ball catch fastens to door edge, strike positions in door frame
• Drill a 20mm diameter hole in the door edge, 12mm deep to accommodate the catch cylinder
• Position strike plate template to engage the catch. Mark the strike plate area and catch hole with pencil
• Chisel rebate the strike plate area to 1mm depth and catch hole to 3mm depth
• Position strike plate and fix using screws provided
