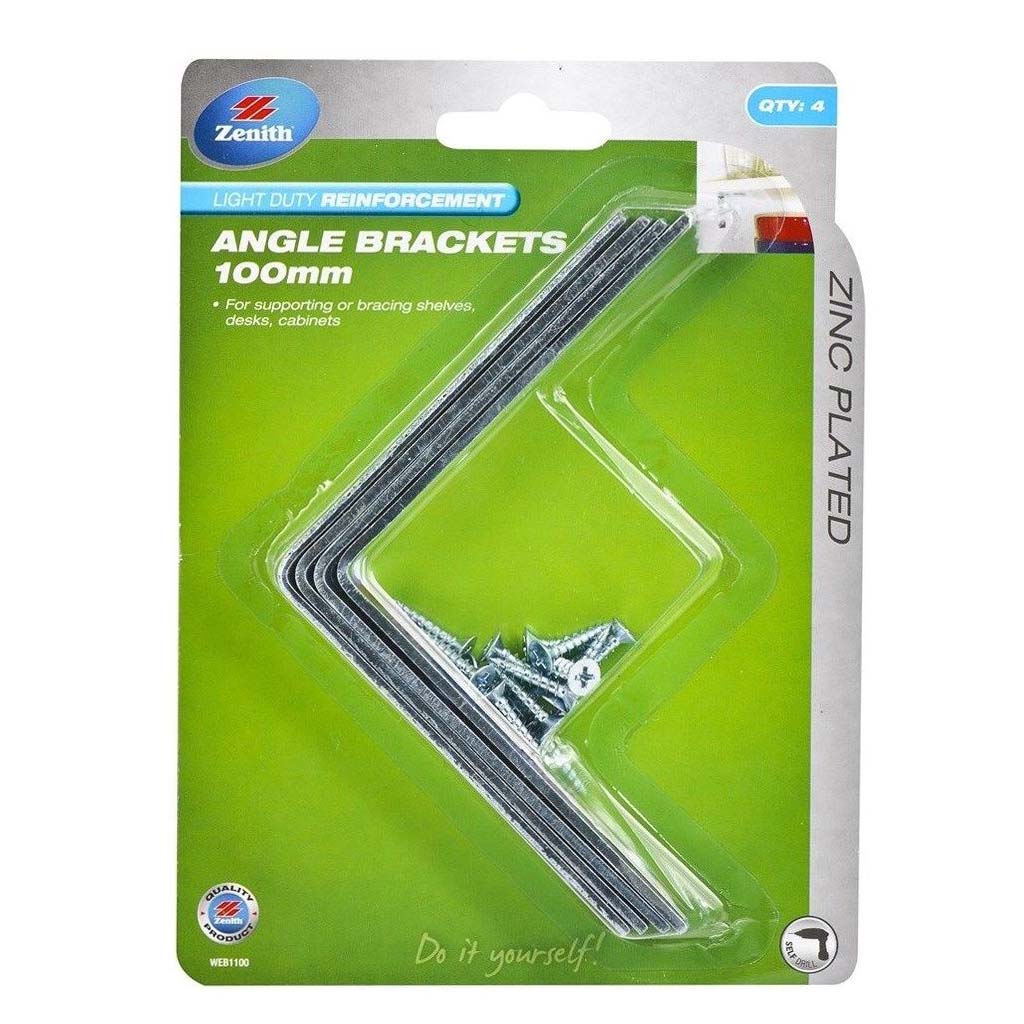

Zenith 22X100mm Light Duty Reinforcement Angle Brackets Zinc WEB1100

Reinforce and support shelves, desks, cabinets, and timber frames with these heavy-duty Zenith light duty angle brackets. Measuring 22x100x2.5mm and finished in corrosion-resistant zinc, these brackets deliver reliable strength for residential and light commercial applications requiring maximum support span. Each pack includes 4 brackets with matching screws, making them ideal for larger repairs, furniture assembly, or shelf installations where superior load capacity is essential.

Key Features:

• Zinc-plated finish for rust resistance and durability
• Heavy-duty 22x100x2.5mm dimensions for maximum load capacity
• 4-piece pack with screws included
• Internal strengthening rib for added load support
• Suitable for timber, shelving, and cabinet reinforcement

Specifications:

• Dimensions: 22mm x 100mm x 2.5mm
• Material: Zinc-plated steel
• Pack quantity: 4 brackets
• SKU: WEB1100
• Barcode: 9310086648470

Directions:

• Position bracket in location to check that unit will function as intended.
• Fasten with screws provided using a No.2 Phillips head insert bit at 1000rpm.
• Alternatively you can use a standard screwdriver.
• Mark holes for screws, drill pilot holes using a 2.5mm drill bit and fasten using screws provided and a Phillips head screwdriver.
• Ensure that the bracket is square when fixing.

Note:

• If bracket is being used for shelves, screw brackets into wall, then fasten shelf onto bracket.
• When brackets are to be used as an external reinforcement on timber, allowance needs to be made for the internal strengthening RIB.
• The bracket is not countersunk on the external side so raised head screws are recommended for a neat finish.
• The use of longer screws is recommended where brackets may be subject to abnormal/heavy loads.
• Screws supplied are suitable for fixing brackets to timber.
• For fixing to other surfaces, use equivalent fixings and suitable drill.
• Due to possible differences in applications, the installer must make their own evaluation of the suitability and strength of the bracket for their specific application.
