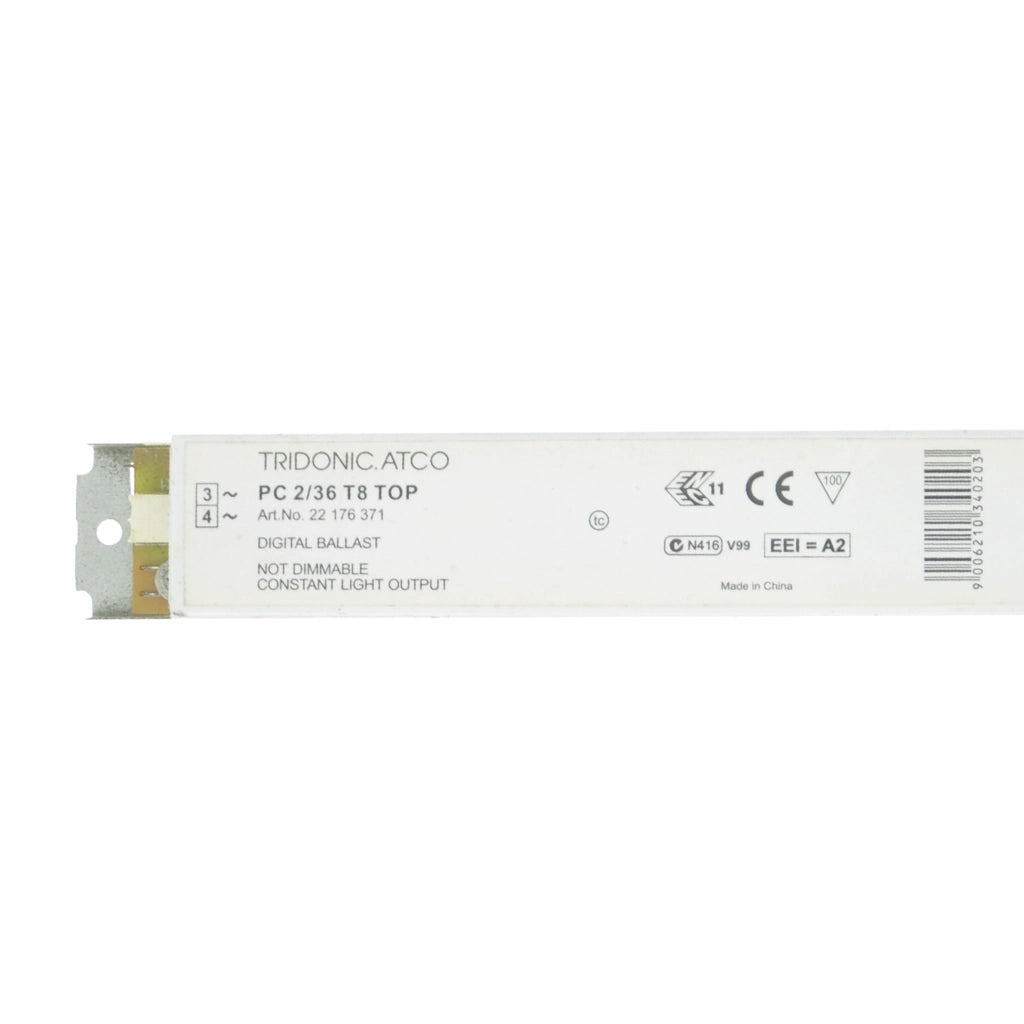

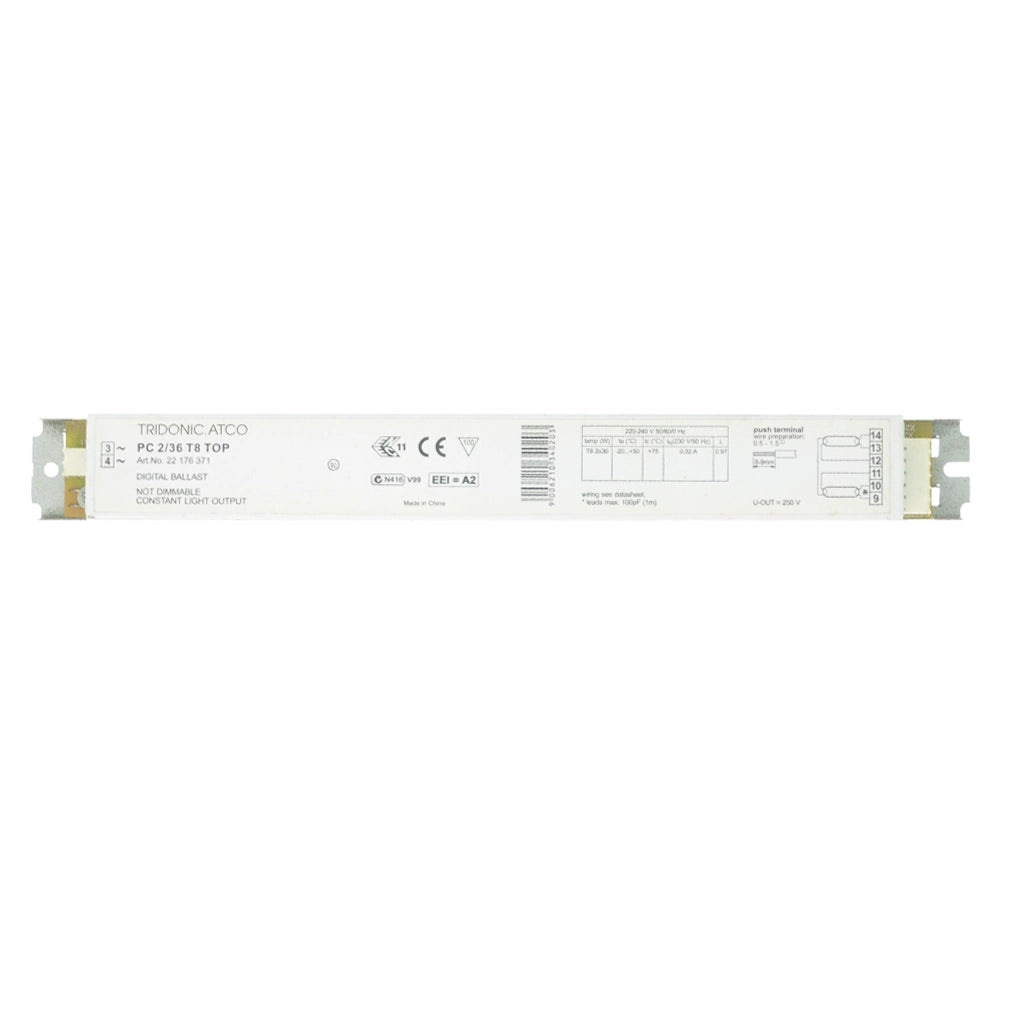

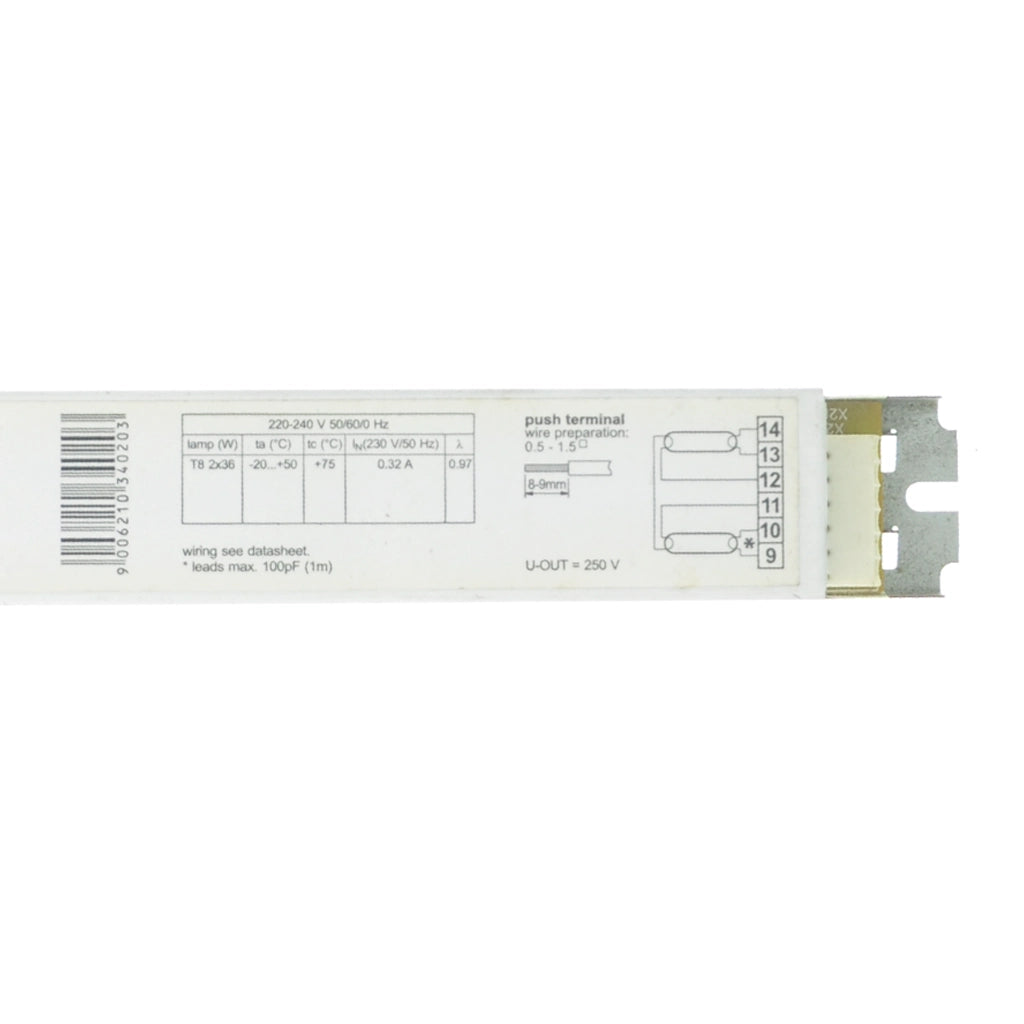

Tridonic Atco Digital Ballast T8 2X36W Non Dim 22176371

• Used to connect 2 of T8 36W fluorescent tubes.
• Non dimmable.
• CELMA Energy Efficiency Index A2
• Nominale life time up to 50,000 h (at ta 50 °C with a failure rate max. 0.2 % per 1,000 h)
• Large temperature range (for values see table)
• Fixed frequency operation for constant lamp current
• Lamp preheating for min. 30,000 starts without replacement of lamps
• Constant luminous flux irrespective of fluctuations in mains voltage
• Designed for THD < 10 %
• For luminaires of protection class I and protection class II
• Automatic start after replacement of defective lamps (detects 1
• lamp)
• Safety shutdown of defective lamps and at end of life
• Push terminal for rapid automatic or manual wiring
• Temperature protection as per EN 61347-2-3 C5e

Specifications:

• AC voltage range: 198 – 264 V
• DC voltage range: Not supported
• Overvoltage protection: 320 V AC, 1 h
• Defined warm start: ≤ 1.5 s
• Operating frequency: ≥ 39 kHz
• Type of protection: IP20
• Lamp Wattage: 2X36W
• Lamp Power: 64W
• Circuit Power: 71.5W
• Lamp Type: T8
• EEI: A2
• Current at 220V: 0.34A
• Current at 240V: 0.31A
• Dimmable: No
• Dimensions: 280x30x28mm
• Hole Spacing: 270mm
