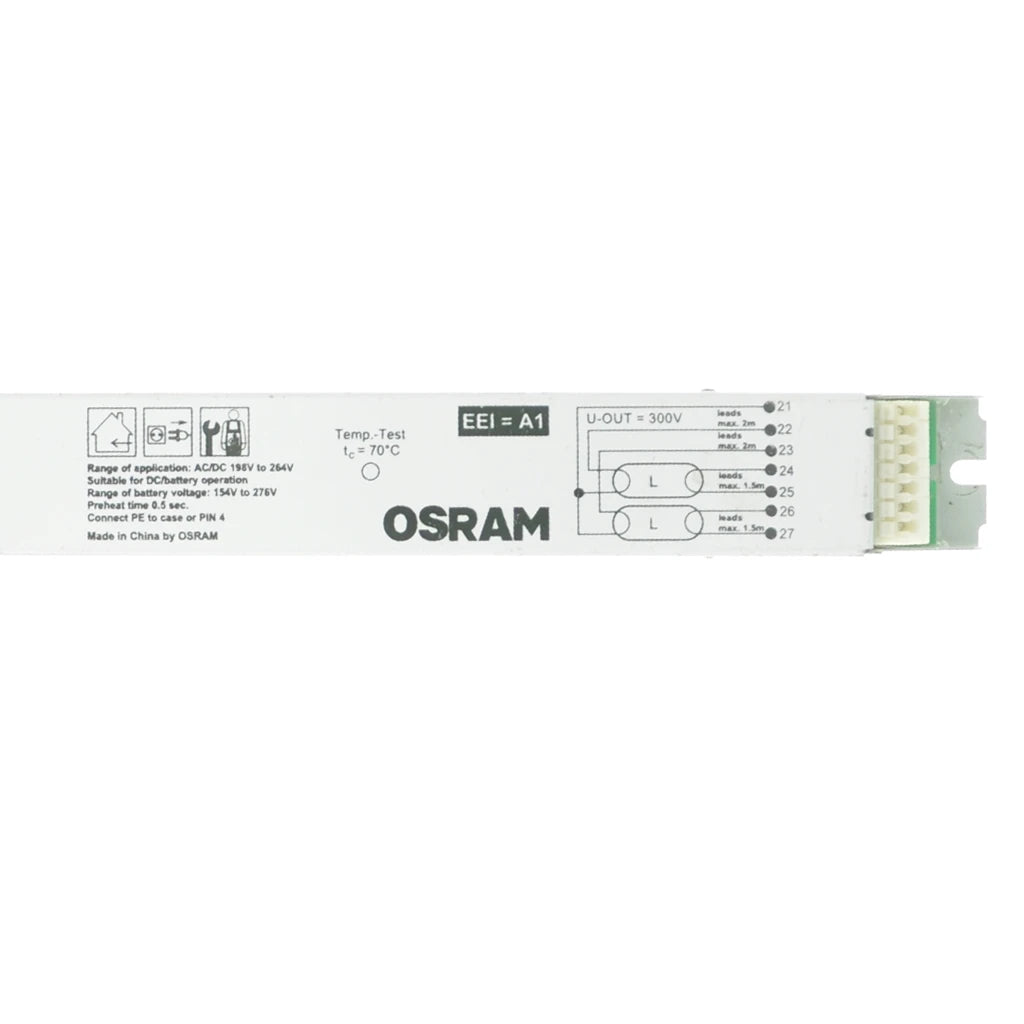

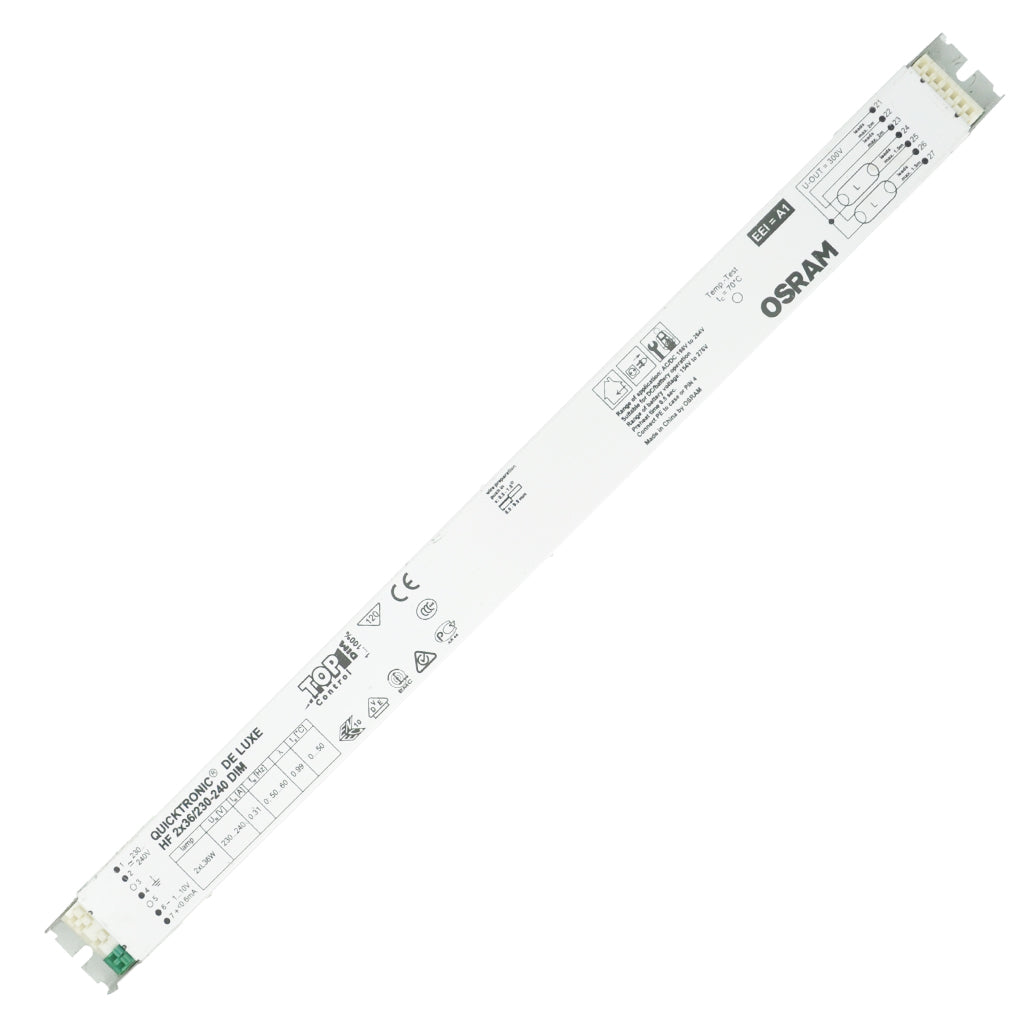

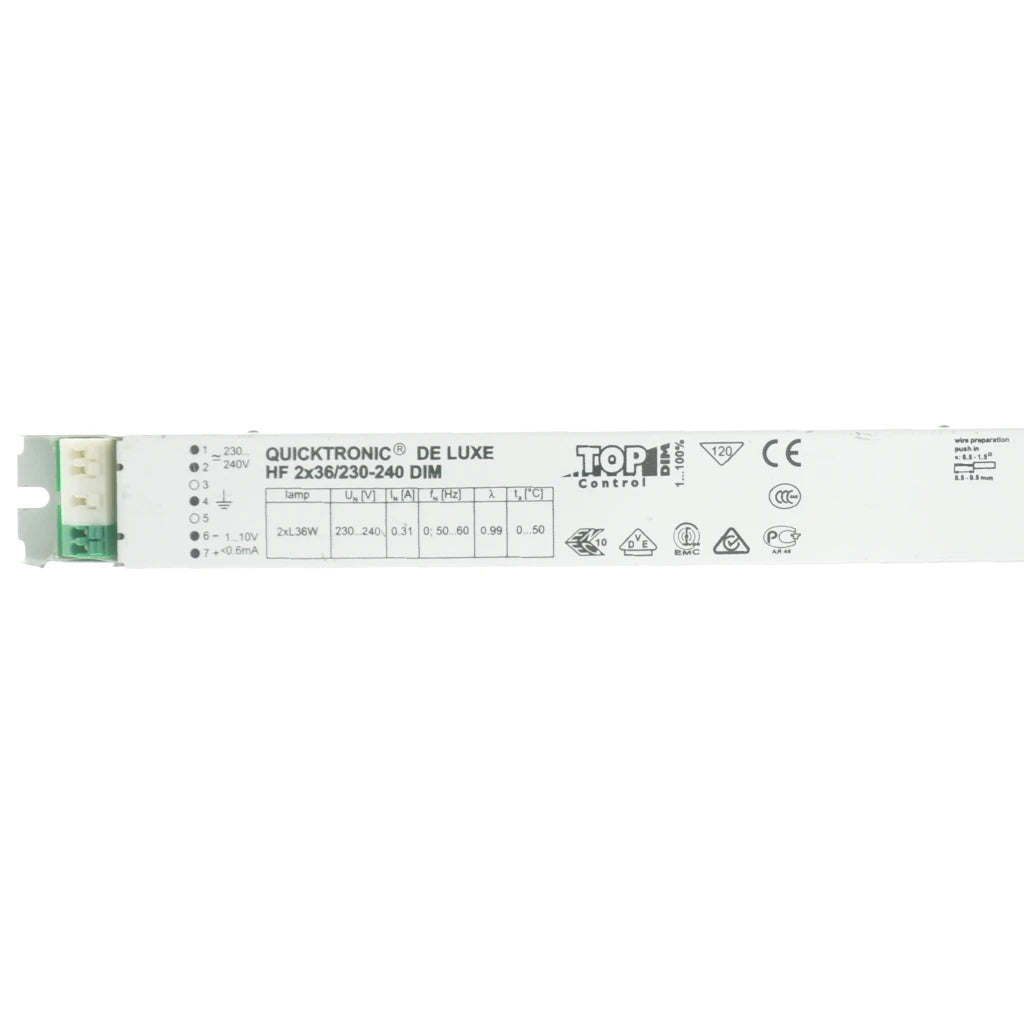

Osram Quicktronic De Luxe HF Dimmable Ballast 2X36W

• Same luminous flux with direct and alternating current
• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high energy efficiency due to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption

Areas of Application:

• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
• Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Suitable for luminaires of protection class I

Features:

• Control via 1…10 V interface
• Supply voltage: 220…240 V
• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Line voltage: 198…264 V
• Dimming range: 1…100 % luminous flux
• Lamp start: within 0.6 s
• Lifetime: > 100,000 h (for T = 65 °C at Tc)
• Automatic shutdown of defective lamps and at end of life (EoL T.2)
• Energy Efficiency Index EEI: A1 BAT
• Power boost for stable lamp operation
• Overtemperature protection: Thermal management at high tc temperatures
• Safety: to EN 61347-2-3

Specifications:

• Nominal Wattage: 72W
• Nominal Voltage: 220...240V
• Input Voltage AC: 198...264V
• Input Voltage Voltage DC: 154...276V
• Type of Current: AC/DC
• Inrush Current: 28A
• Mains Frequency: 50/60 Hz
• Operating Frequency: 44...120kHz
• Starting Time" 0.6S
• Length: 423mm
• Mounting Hole Spacing Length: 415mm
• Width: 30mm
• Height: 21mm
• ECG Lifetime: 100,000H
• Dimmable: Yes
• Dimming Interface: 1...10V
• Dimming Range: 1...100%

Note:

• This is discontinued product. Osram does not makes it anymore.
• This is electrical comment, it does not comes with retail package.
• Some of items maybe looks old, and has scratch. Supplier confirmed it never been used.
