OSRAM Bi-Pin G4 12V 10W Halostar Oven Light Bulb 300°C
OSRAM Bi-Pin G4 12V 10W Halostar Oven Light Bulb 300°C is backordered and will ship as soon as it is back in stock.
Pickup available at Double Bay Hardware
Usually ready in 1 hour
Light Bulb Fittings
Light Bulb Fittings

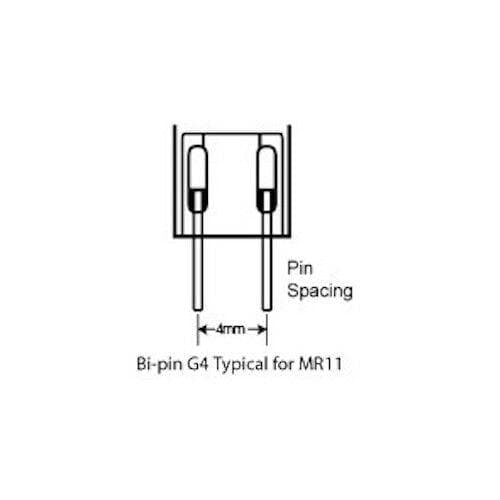

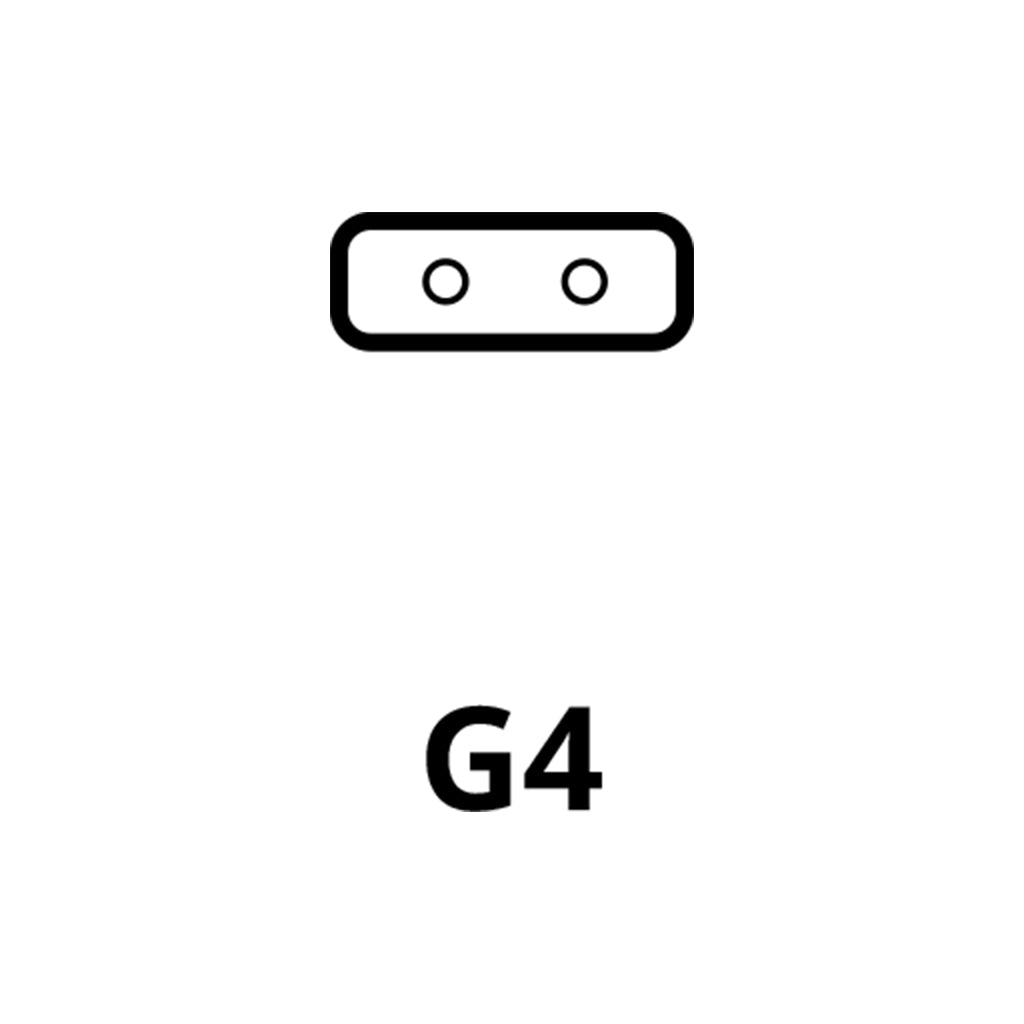

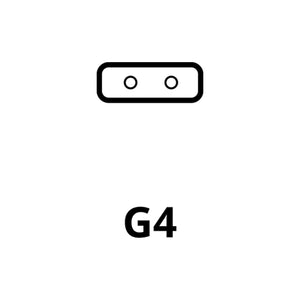

The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.
Colour Temperature
Colour Temperature
Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.
Equivalent Wattages Between Different Light Bulbs
Equivalent Wattages Between Different Light Bulbs
As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.
12V 10W Oven Capsule
G4 halogen lamp marked 300°C for a matching shielded oven lamp assembly.
140lm · 2800K
Warm white light with Ra 100 colour rendering and a 2,000-hour rated life.
⚠️ Important: This is a 12V low voltage bulb and requires a compatible 12V transformer or power supply. It will not work with standard 240V mains voltage.

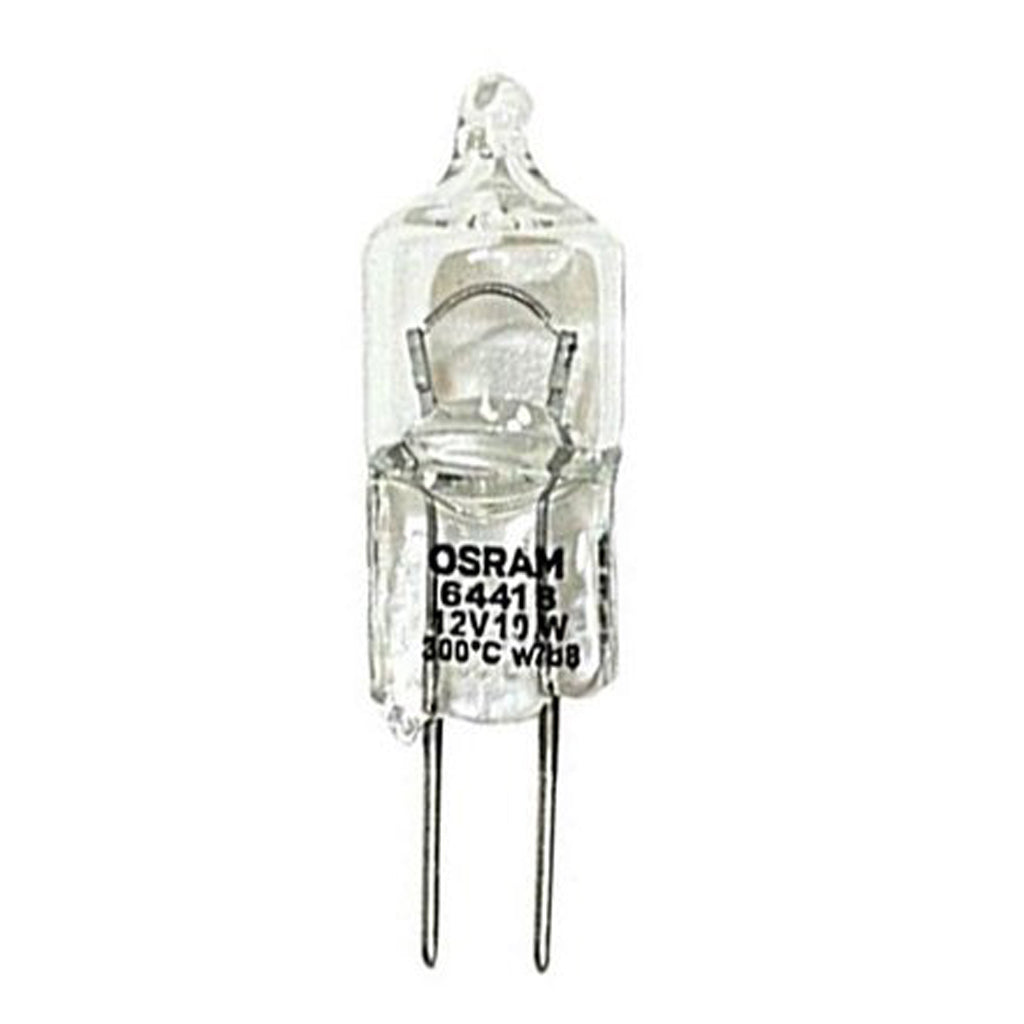

This OSRAM HALOSTAR Oven halogen capsule has a G4 bi-pin base and is marked 12V 10W 300°C. It produces 140 lumens of 2800K warm white light with Ra 100 colour rendering and immediate full brightness.
Use it only in a shielded oven lamp assembly specified for this replacement lamp. Match the appliance model, 12V supply, G4 socket, 10W load and 10mm diameter × 33mm length, retaining the required lamp cover and seals. The 300°C marking does not establish compatibility with every oven or cleaning cycle. Follow the appliance manufacturer's replacement and self-cleaning instructions, keep the lamp switched off during high-temperature self-cleaning, and use a qualified repairer for internal electrical work.
Key Features
- HALOSTAR Oven halogen capsule with a 300°C marking.
- G4 bi-pin base and clear finish.
- 12V operation and actual 10W power consumption.
- 140-lumen output and 2800K warm white light.
- Ra 100 colour rendering and immediate full brightness.
- For use in matching shielded oven lamp assemblies.
- 2,000-hour rated average life.
- 10mm diameter and 33mm overall length.
Specifications
- Brand: OSRAM
- Series: HALOSTAR Oven
- Technology: Halogen
- Base: G4
- Voltage: 12V
- Wattage: 10W
- Temperature marking: 300°C
- Light output: 140lm
- Colour temperature: 2800K Warm White
- CRI: Ra 100
- Beam angle: 360°
- Finish: Clear
- Rated average life: 2,000 hours
- Switching cycles: 50,000
- Diameter: 10mm
- Overall length: 33mm
-
Light Bulb Shape
-
Light Bulb Type
-
Fitting/Base
-
Wattage
-
Voltage
-
Colour Temperature
-
Lumen Output
-
CRI
-
Beam Angle
-
Finish
-
Rated Average Life
-
Product Diameter/Thickness
-
Product Length
-
SDS or PDSNone
We are more than happy to assist it for you.
You could:
1. Contact us at 02 9327 5603 or admin@doublebayhardware.com.au
Shipping Information:
- Orders are dispatched from our Sydney warehouse, same business days before 10AM.
- Standard delivery across Australia typically takes 2–8 business days depending on your location. Overseas deliveries generally take 3–10 business days.
- You can estimate postage by adding products to your cart and entering your postcode. The estimated delivery time will be displayed at checkout once you’ve entered your shipping details.
Click & Collect:
- Free Click & Collect is available from our Double Bay store. Usually is ready in 1 hour. You will receive an email notification when your order is ready for collection.
Returns Policy:
1. If you change your mind, most unused and unopened items can be returned within 30 days of purchase.
To be eligible for a return:
- Item must be unused and in its original packaging.
- Proof of purchase is required.
- Special order, clearance, hazardous and certain electrical products may not be eligible for return.
2. If an item arrives damaged or faulty, please contact our customer service team as soon as possible so we can arrange a replacement, repair or refund in accordance with Australian Consumer Law.
For full details, please visit our Shipping Policy and Returns Policy pages.
Payment & Security
Safe & Secure
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Buy now pay later with afterpay
Frequently Asked Questions
What power supply does this oven bulb require?
What power supply does this oven bulb require?
Will this fit every oven with a G4 socket?
Will this fit every oven with a G4 socket?
Can the lamp remain on during high-temperature self-cleaning?
Can the lamp remain on during high-temperature self-cleaning?
