OSRAM Bi-Pin G4 6V 10W Halogen Light Bulb Clear
OSRAM Bi-Pin G4 6V 10W Halogen Light Bulb Clear is backordered and will ship as soon as it is back in stock.
Pickup available at Double Bay Hardware
Usually ready in 1 hour
Light Bulb Fittings
Light Bulb Fittings
The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.
Colour Temperature
Colour Temperature
Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.
Equivalent Wattages Between Different Light Bulbs
Equivalent Wattages Between Different Light Bulbs
As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.
6V G4 Halogen
10W clear bi-pin capsule with a UV filter.
2800K Warm White
130-lumen output with CRI 100 for natural colour rendering.
⚠️ Important: This is a 6V low voltage bulb and requires a compatible 6V transformer or power supply. Do not connect it directly to 12V, 24V or standard 240V mains voltage.

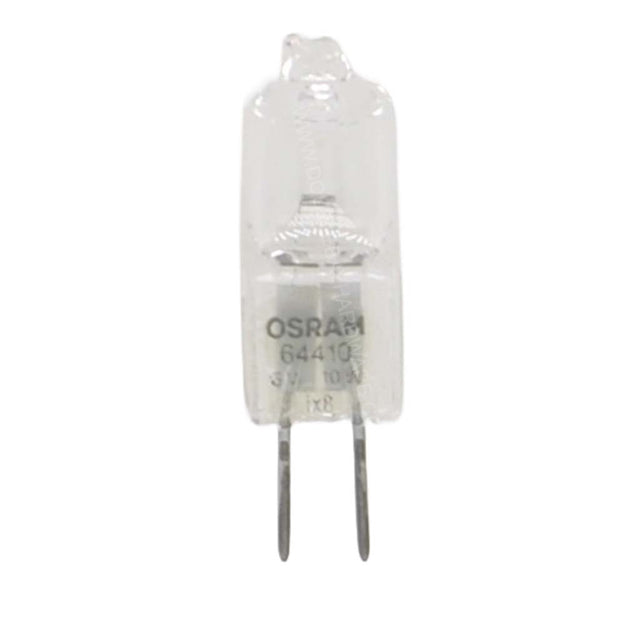

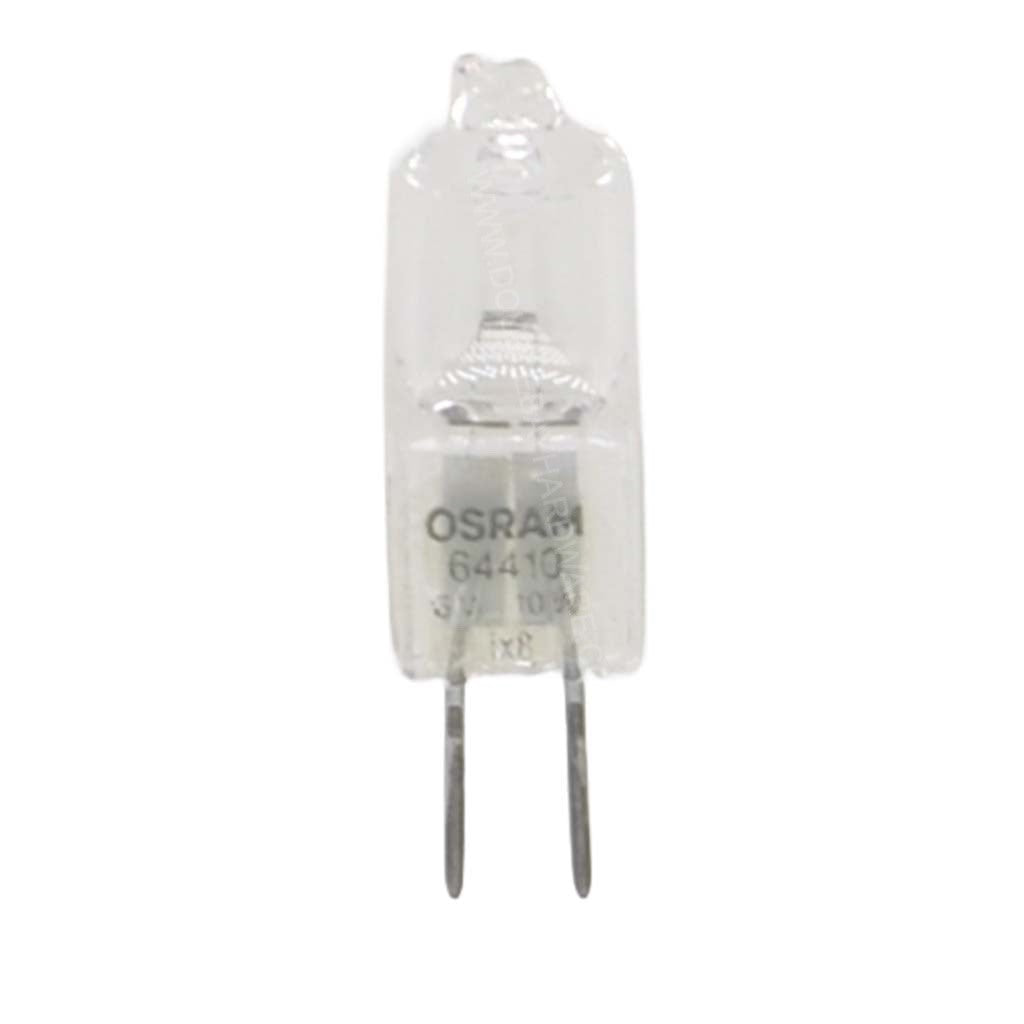

The OSRAM G4 bi-pin halogen light bulb produces 130 lumens of 2800K warm white light from a 10W clear capsule. Its axial filament supports directional lighting in a suitable luminaire, while CRI 100 provides natural colour rendering.

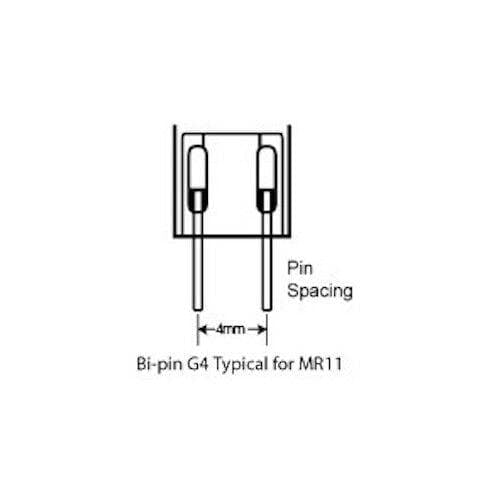

This lamp uses a G4 bi-pin base and includes a UV filter and corrosion-protected pins. Match the fitting to its 6V supply and 10W rating, check the available installation space, and follow the equipment's ventilation and heat-clearance requirements.
Key Features
- Clear halogen capsule with a G4 bi-pin base.
- 130-lumen output with 2800K warm white light.
- CRI 100 for natural colour rendering.
- Axial filament for directional lighting in a suitable fitting.
- Special pins for corrosion protection.
- UV filter and mercury-free construction.
- Approved for use in open luminaires to IEC 60598-1.
- Dimmable with a compatible dimmable 6V supply and halogen dimmer within their minimum and maximum load ratings.
- 4,000-hour rated average life.
Specifications
- Brand: OSRAM
- Technology: Halogen
- Shape: Bi-Pin capsule

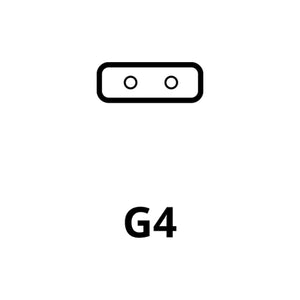

- Base: G4
- Voltage: 6V
- Wattage: 10W
- Finish: Clear
- Colour temperature: 2800K Warm White
- Nominal luminous flux: 130lm
- Colour rendering index: CRI 100
- Light centre length: 22mm
- Filament length: 1.7mm
- Filament diameter: 0.7mm
- UV filter: Yes
- Mercury content: None
- Dimmable: Yes
- Rated average life: 4,000 hours
-
