nls JCD Bi-Pin GY6.35 250V 100W Halogen Light Bulb is backordered and will ship as soon as it is back in stock.

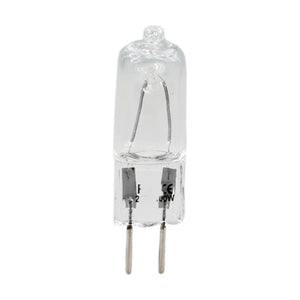

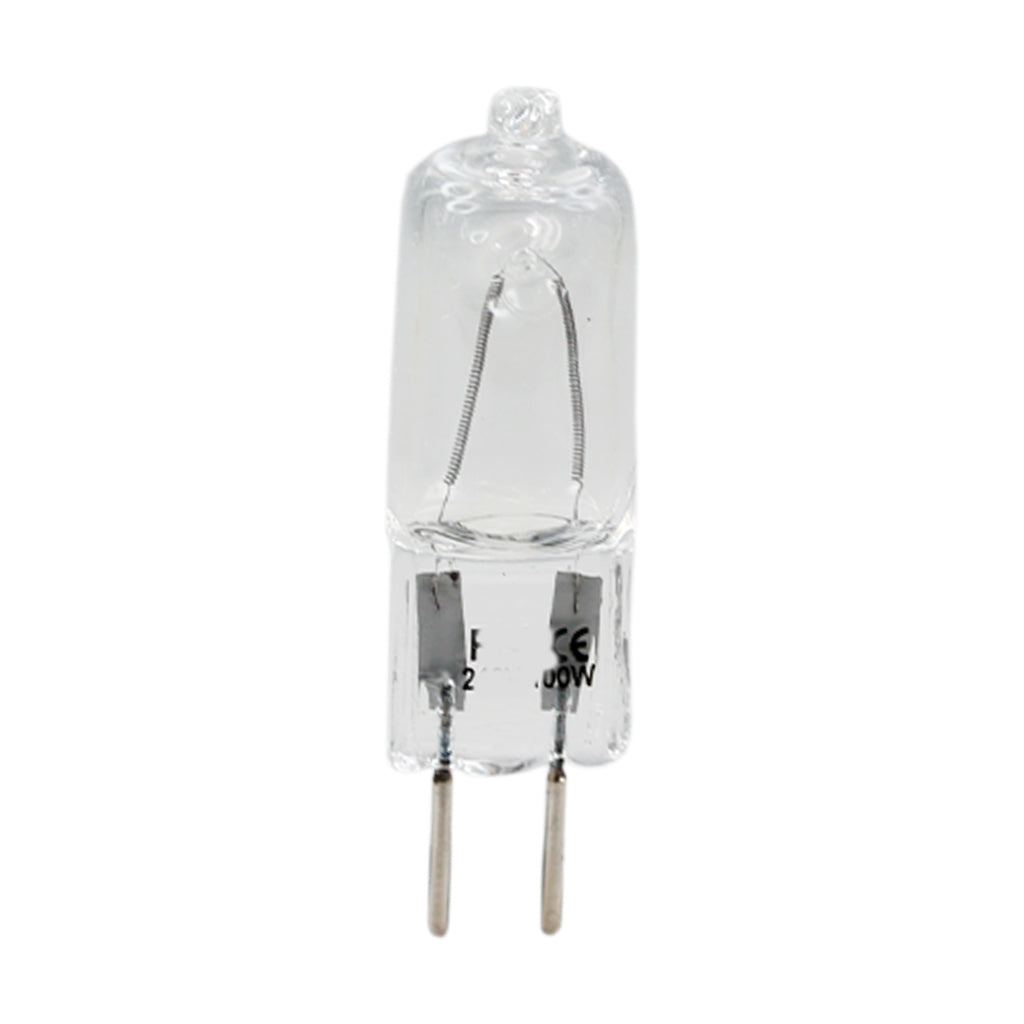

The National nls JCD bi-pin halogen bulb delivers 2100lm of 2900K warm white light through a clear capsule. It uses a GY6.35 fitting and is rated 250V and 100W, with a rated average life of 2,000 hours.
Measuring 25mm in diameter and 70mm long, this lamp requires equipment approved for its exact lamp type, voltage, dimensions and 100W load. It is not a 12V low-voltage capsule. Match the supply and lamp rating to the equipment's instructions; matching pin spacing alone does not establish compatibility. Observe the fitting's maximum wattage, heat tolerance, ventilation, clearance and protective-cover requirements. Switch off the electricity supply and allow complete cooling before replacement. Do not touch the glass with bare fingers. Follow the manufacturer's cleaning instructions after accidental glass contact and retain all required fitting protection.
Key Features
- JCD bi-pin halogen lamp
- GY6.35 fitting with two straight pins
- 250V, 100W rating
- Clear capsule with visible internal filament
- 2900K warm white light
- 2100lm light output
- 25mm diameter and 70mm overall length
- 2,000-hour rated average life
Specifications
- Brand: National nls
- Technology: Halogen
- Shape: JCD Bi-Pin
- Fitting: GY6.35
- Voltage: 250V
- Wattage: 100W
- Finish: Clear
- Colour Temperature: 2900K Warm White
- Lumen Output: 2100lm
- Rated Average Life: 2,000 hours
- Diameter: 25mm
- Overall Length: 70mm
-
