OSRAM MR11 G5.3 12V 100W BELLAPHOT Halogen Light Bulb
OSRAM MR11 G5.3 12V 100W BELLAPHOT Halogen Light Bulb is backordered and will ship as soon as it is back in stock.
Pickup available at Double Bay Hardware
Usually ready in 1 hour
Light Bulb Fittings
Light Bulb Fittings
The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.
Colour Temperature
Colour Temperature
Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.
Equivalent Wattages Between Different Light Bulbs
Equivalent Wattages Between Different Light Bulbs
As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.
Dichroic Reflector
MR11 projector lamp with a 26mm focal length and G5.3 base.
12V 100W BELLAPHOT
3200K light with CRI 100 and a 25-hour rated life.
⚠️ Important: This is a 12V low voltage bulb and requires a compatible 12V transformer or power supply. It will not work with standard 240V mains voltage.

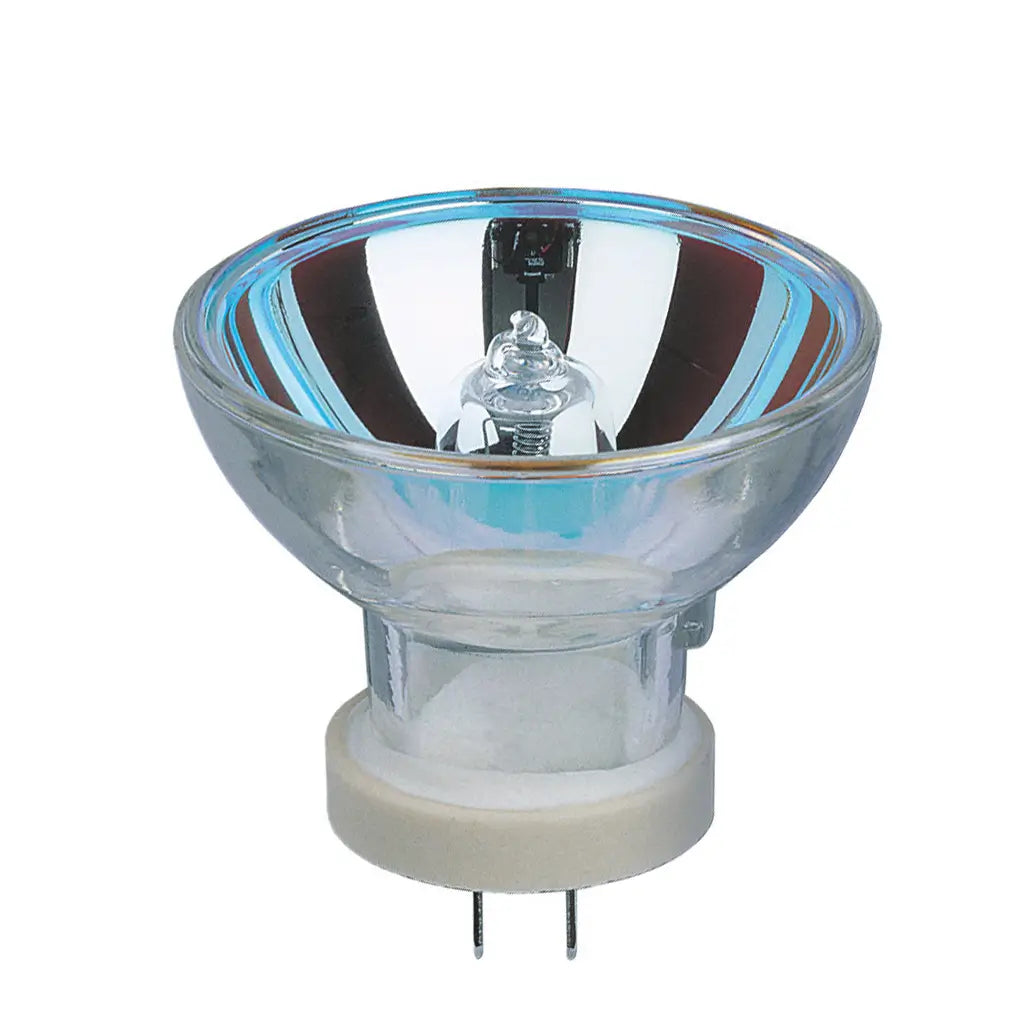

This OSRAM BELLAPHOT MR11 halogen projector lamp combines a dichroic reflector with a 26mm focal length. It produces 3200K light with CRI 100 for equipment designed around this lamp's optical configuration.
The lamp draws 100W at 12V and has a G5.3 base, a 35mm diameter and a 35mm length. Match the equipment's specified replacement lamp, supply, focal alignment and p90/p15 operating position. Use equipment rated for the actual 100W load and follow its cooling, ventilation and heat-clearance requirements.
Key Features
- BELLAPHOT halogen projector lamp.
- MR11 dichroic reflector.
- 26mm focal length.
- 12V operation and actual 100W power consumption.
- G5.3 two-pin base.
- 3200K light with CRI 100.
- Dimmable with compatible controls and a dimmable 12V supply.
- 25-hour rated life.
Specifications
- Brand: OSRAM
- Range: BELLAPHOT
- Technology: Halogen
- Shape: MR11
- Base: G5.3
- Reflector coating: Dichroic
- Voltage: 12V
- Wattage: 100W
- Colour temperature: 3200K
- Colour rendering index: 100
- Focal length: 26mm
- Diameter: 35mm
- Length: 35mm
- Operating position: p90/p15
- Rated life: 25 hours
-
Light Bulb Shape
-
Light Bulb Type
-
Fitting/Base
-
Wattage
-
Voltage
-
Colour Temperature
-
Dimmable
-
Product Diameter/Thickness
-
Product Length
-
SDS or PDSNone
