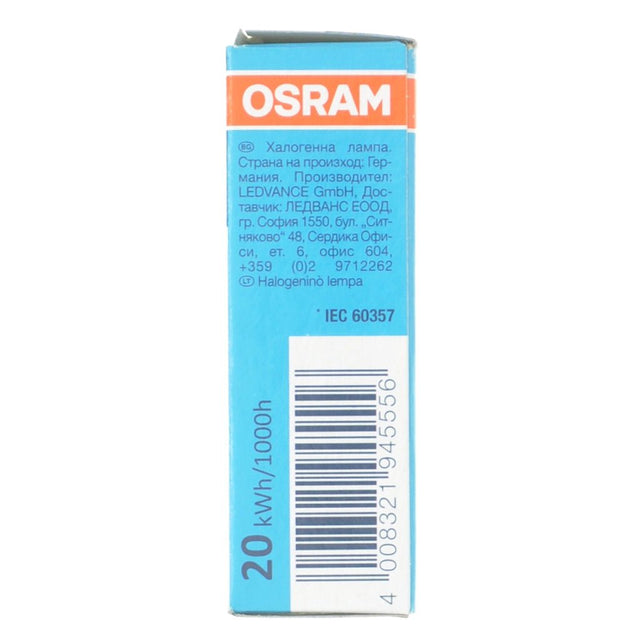

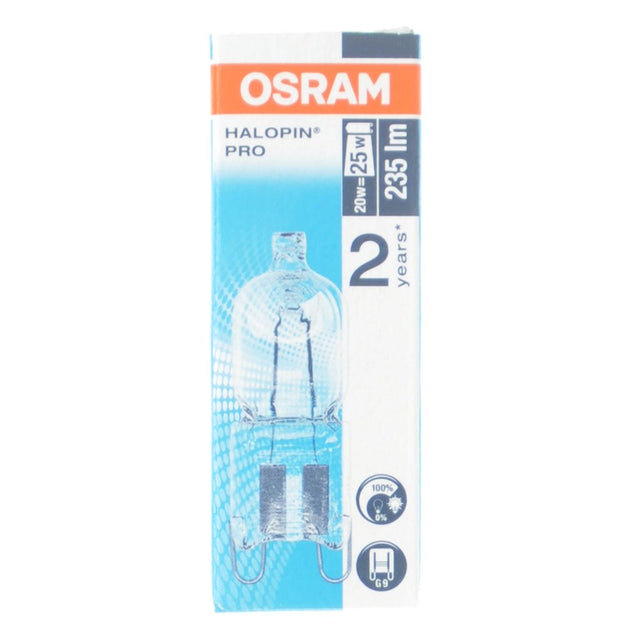

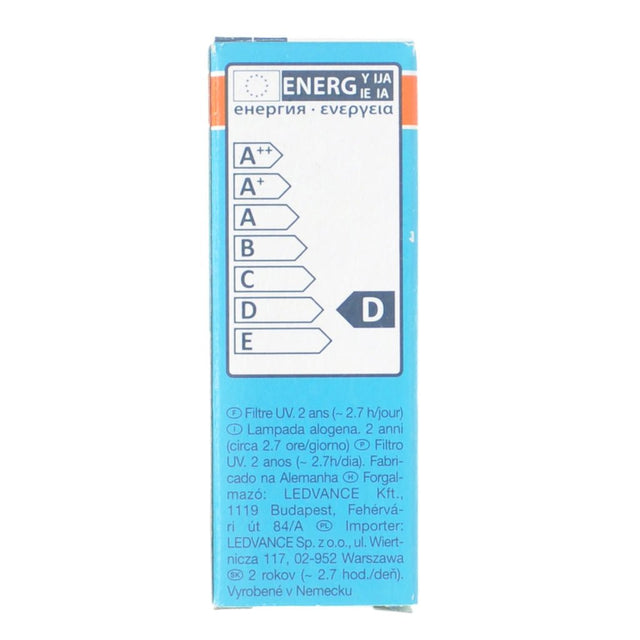

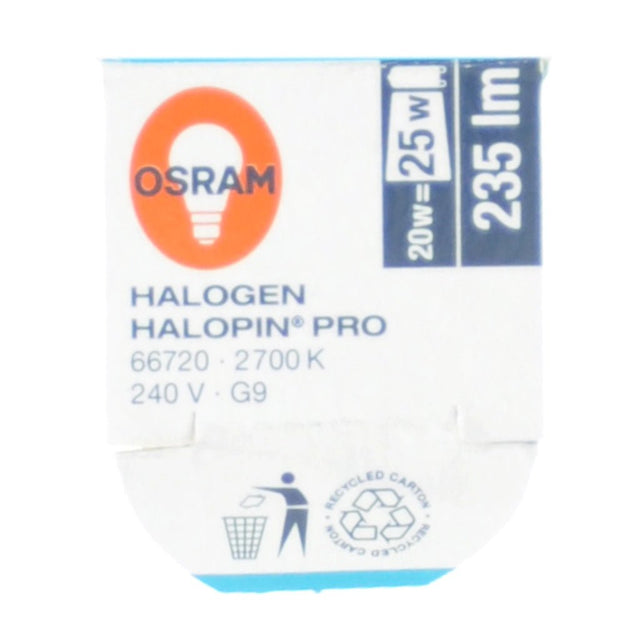

Osram Halopin Pro Bi-Pin G9 240V 20W Halogen Light Bulb Clear
Osram Halopin Pro Bi-Pin G9 240V 20W Halogen Light Bulb Clear is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Double Bay Hardware
Light Bulb Fittings
Light Bulb Fittings
The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.
Colour Temperature
Colour Temperature
Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.
Equivalent Wattages Between Different Light Bulbs
Equivalent Wattages Between Different Light Bulbs
As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.
Notify me when available or suggest replacement.
Sign up to be the first to know when it's here, or suggested replacement product.
The Osram Halopin Pro clear G9 halogen capsule delivers 235lm of 2700K warm white light with CRI Ra 100. Its compact clear envelope reveals the filament assembly, and it provides instant full light with a 240V, 20W rating.
Measuring 14mm in diameter and 46mm in overall length, the capsule has two G9 loop contacts and a rated average life of 2,000 hours. Match the socket, supply voltage, approved lamp type and dimensions to your fitting, and follow its maximum wattage, heat, ventilation and clearance requirements. When dimming, observe the control's halogen-lamp rating and minimum and maximum total connected load, counting 20W per bulb. Follow the lamp and fitting instructions for protective covers and installation. Switch off power and allow the bulb to cool completely before handling.
Key Features
- Osram Halopin Pro clear halogen capsule
- G9 loop-contact fitting
- 240V, 20W power rating
- 235lm light output
- 2700K warm white light
- CRI Ra 100
- Instant full light
- Dimmable
- UV filter
- 14mm diameter and 46mm overall length
- 2,000-hour rated average life

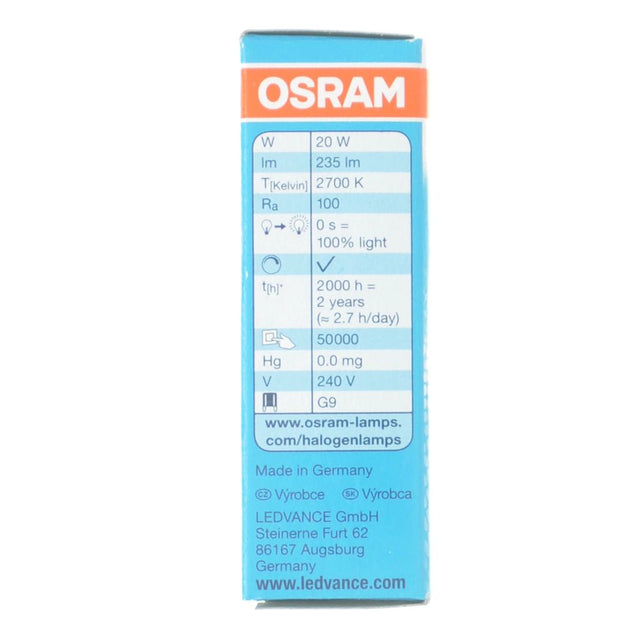

Specifications
- Brand: Osram
- Range: Halopin Pro
- Type: Halogen Light Bulb
- Shape: Bi-Pin Capsule
- Fitting: G9 Loop Contacts
- Voltage: 240V
- Wattage: 20W
- Colour Temperature: 2700K Warm White
- Lumen Output: 235lm
- CRI: Ra 100
- Finish: Clear
- Beam Angle: 360°
- Dimmable: Yes
- Rated Average Life: 2,000 hours
- Diameter: 14mm
- Overall Length: 46mm
-
