Osram Halospot 70 BA15d 12V 20W Halogen Light Bulb 8°
Osram Halospot 70 BA15d 12V 20W Halogen Light Bulb 8° is backordered and will ship as soon as it is back in stock.
Pickup available at Double Bay Hardware
Usually ready in 1 hour
Light Bulb Fittings
Light Bulb Fittings
The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.
Colour Temperature
Colour Temperature
Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.
Equivalent Wattages Between Different Light Bulbs
Equivalent Wattages Between Different Light Bulbs
As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.
Narrow 8° Spot Beam
Aluminium reflector directs light for focused accent illumination.
12V BA15d Halogen
20W lamp with UV-STOP, 150-lumen output and 3000K warm white light.
⚠️ Important: This is a 12V low voltage bulb and requires a compatible 12V transformer or power supply. It will not work with standard 240V mains voltage.

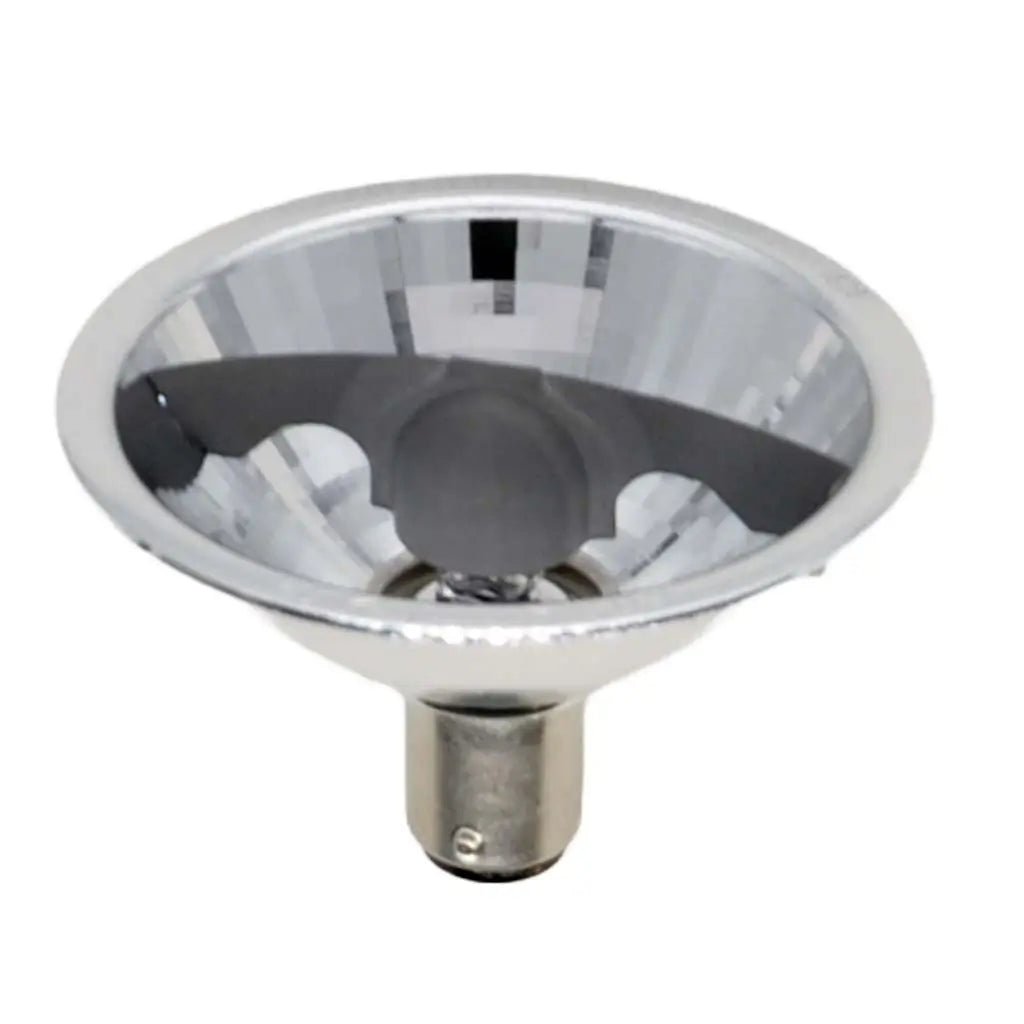

The Osram Halospot 70 halogen light bulb uses an aluminium reflector to produce a narrow 8° spot beam for focused accent lighting. Its 20W halogen source delivers 150 lumens of 3000K warm white light with CRI 100 for natural colour rendering.
This lamp has a BA15d double-contact bayonet base, a 70.5mm diameter and a 50mm length. Match the equipment specification to its 12V supply, 20W load, base and dimensions, and follow the fitting's ventilation and heat-clearance requirements.
Key Features
- Narrow 8° spot beam for targeted accent lighting.
- AR70 aluminium reflector.
- 150-lumen output with 3000K warm white light.
- CRI 100 for natural colour rendering.
- UV-STOP construction.
- BA15d double-contact bayonet base.
- 3,000-hour rated average life.
Specifications
- Brand: Osram
- Range: Halospot 70
- Technology: Halogen
- Reflector: AR70 aluminium
- Base: BA15d double-contact bayonet
- Voltage: 12V
- Wattage: 20W
- Beam angle: 8° Spot
- Light output: 150lm
- Colour temperature: 3000K Warm White
- Colour rendering index: CRI 100
- UV protection: UV-STOP
- Rated average life: 3,000 hours
- Diameter: 70.5mm
- Length: 50mm
-
Light Bulb Shape
-
Light Bulb Type
-
Fitting/Base
-
Wattage
-
Voltage
-
Colour Temperature
-
Lumen Output
-
CRI
-
Beam Angle
-
Rated Average Life
-
Product Diameter/Thickness
-
Product Length
-
SDS or PDSNone
