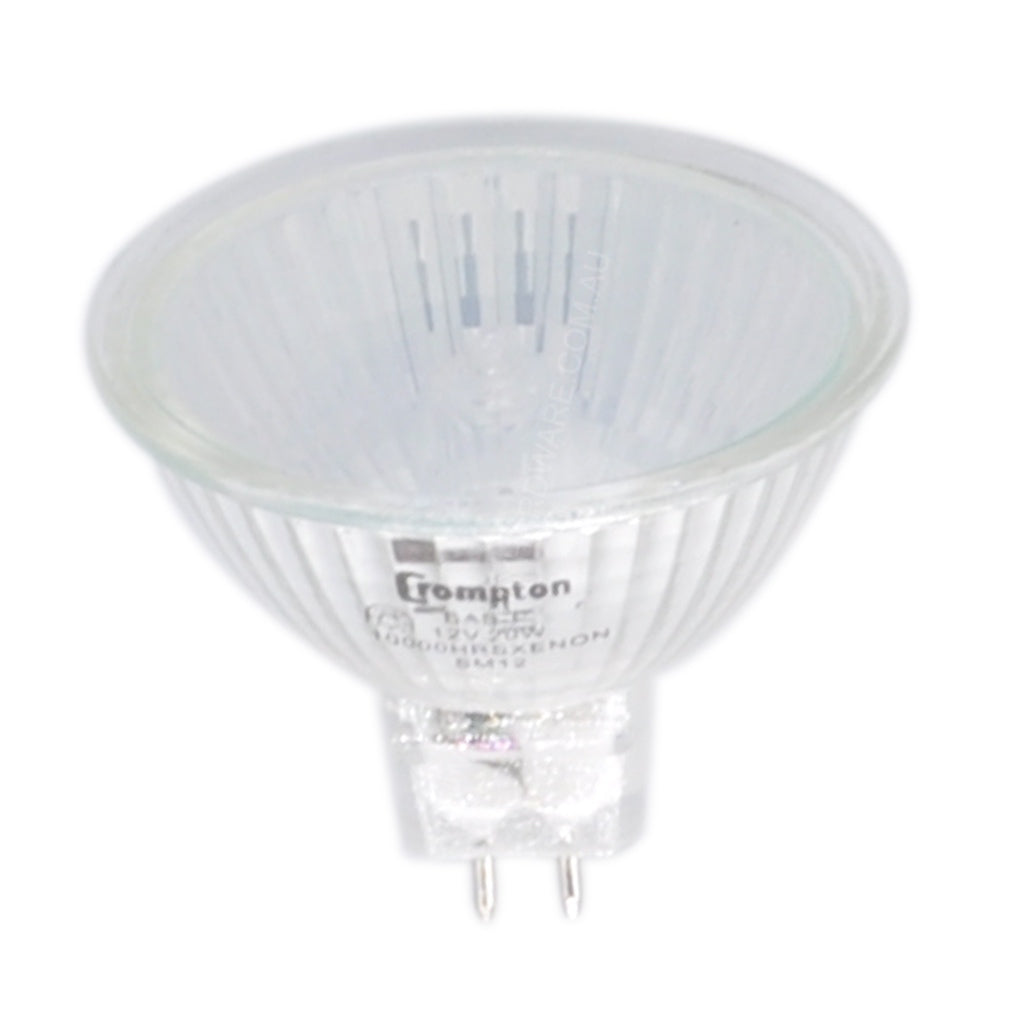

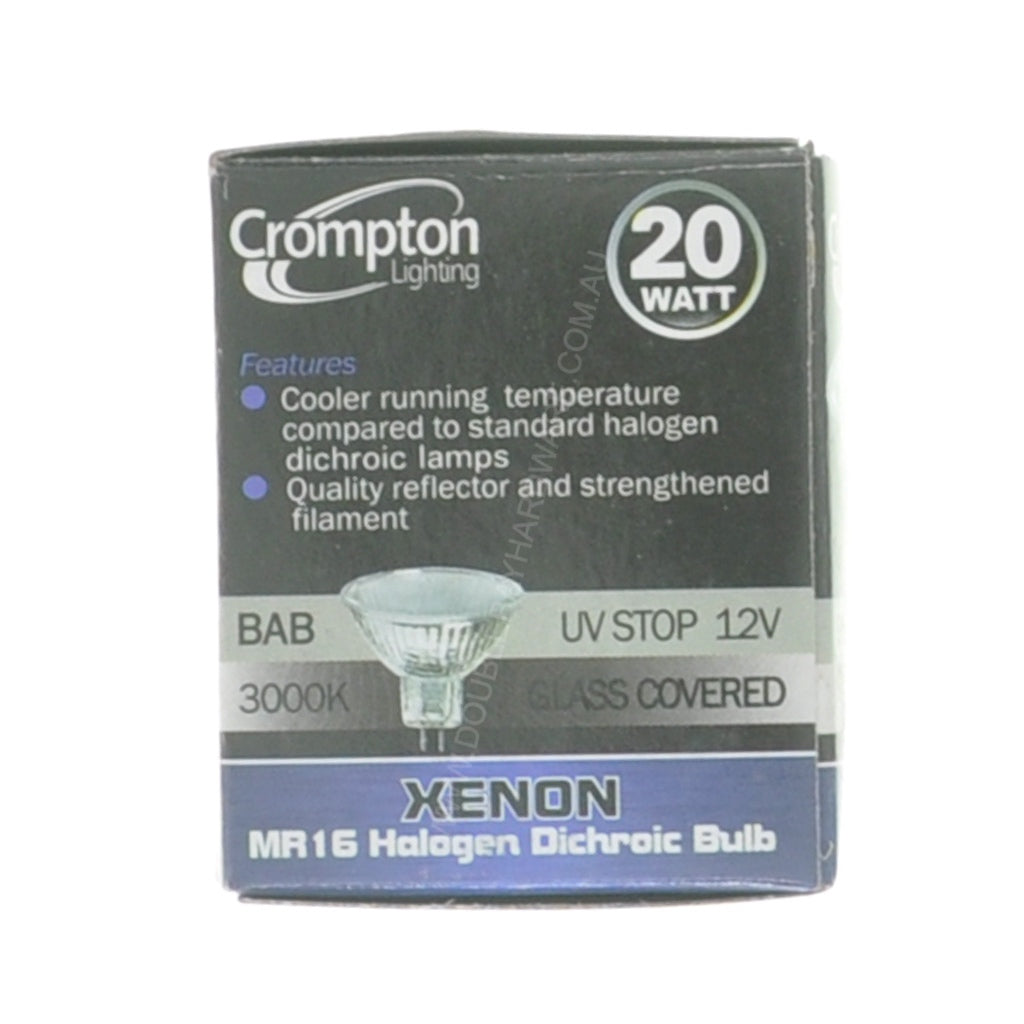

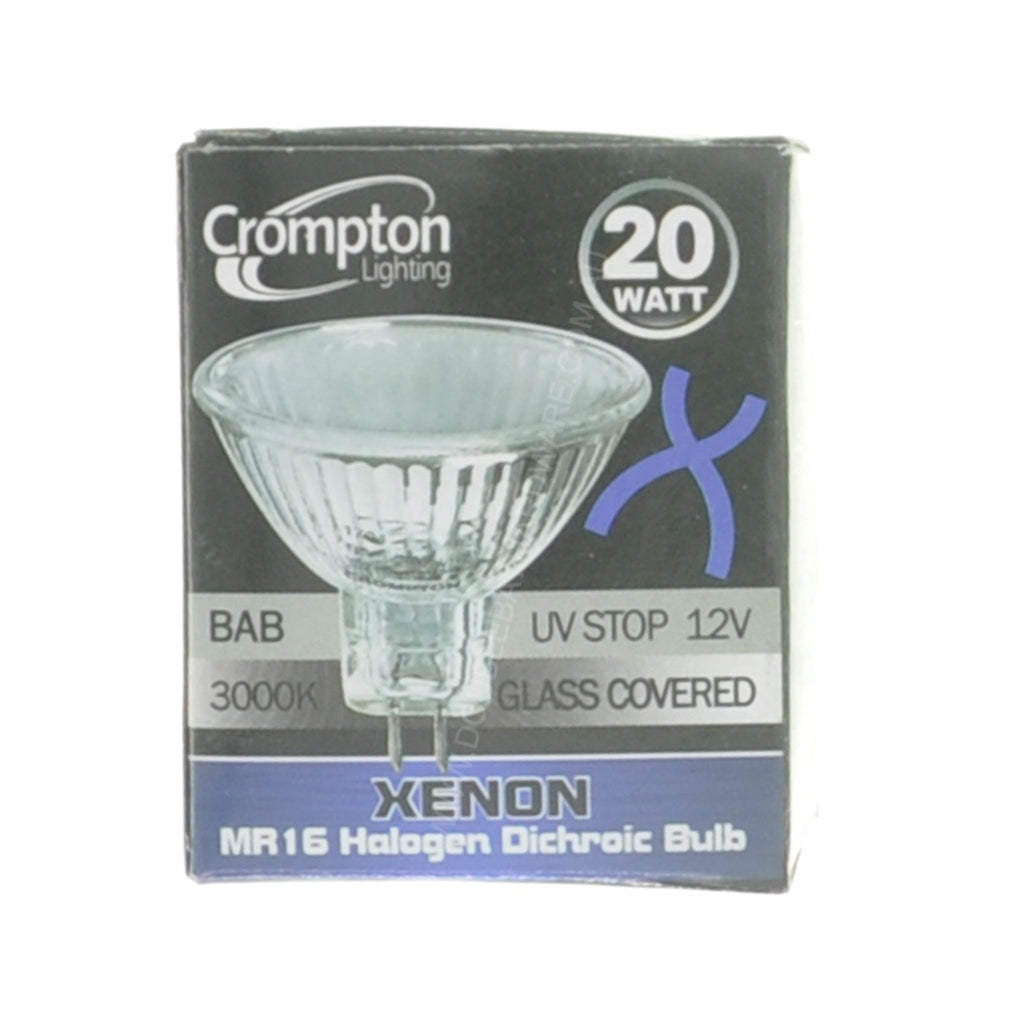

Crompton MR16 GU5.3 12V 20W Dichroic Halogen Light Bulb 36°
Crompton MR16 GU5.3 12V 20W Dichroic Halogen Light Bulb 36° is backordered and will ship as soon as it is back in stock.
Pickup available at Double Bay Hardware
Usually ready in 1 hour

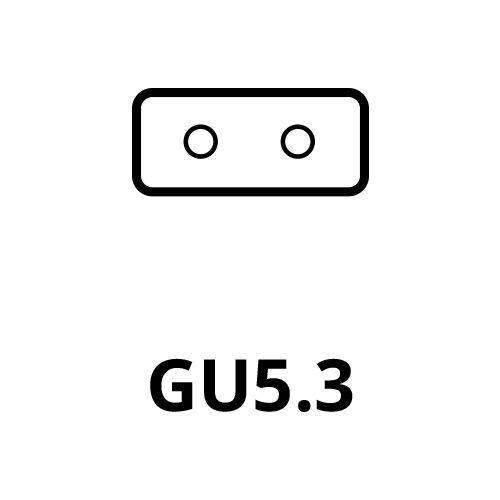

Light Bulb Fittings
Light Bulb Fittings
The light bulb fitting is the part of the bulb that connects it to the socket of a light fixture.
Colour Temperature
Colour Temperature
Colour temperature is measured in Kelvin (K) – the lower the number, the warmer the white light appears, while a higher Kelvin will appear cooler. Colour temperature generally ranges from 2700-3300K (warm) to 3300-5300 (cool) – and 6500K is daylight.
Equivalent Wattages Between Different Light Bulbs
Equivalent Wattages Between Different Light Bulbs
As long as the technology developed, a LED light bulb can only use 8 watt power but light up similar brightness when a incandescent light bulb uses 60 watt power. There is equivalent wattage between different light bulbs. To stop making confuse, you need to know what wattage equivalent to each other. See the table attached as below.
36° Warm White Beam
275-lumen output at 3000K from a 12V 20W xenon halogen lamp.
Glass-Covered Dichroic
MR16 reflector with UV Stop and a strengthened filament.
⚠️ Important: This is a 12V low voltage bulb and requires a compatible 12V transformer or power supply. It will not work with standard 240V mains voltage.
This Crompton MR16 xenon halogen lamp produces 275 lumens of 3000K warm white light through a 36° beam. It combines a dichroic reflector, UV Stop quartz capsule, strengthened filament and glass-covered face.

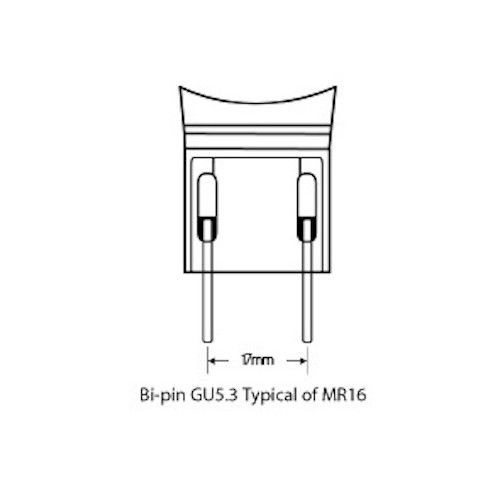

The lamp draws 20W and uses a GU5.3 bi-pin base. Match the fitting and 12V supply to its 51mm diameter, 45mm length and actual 20W load. Follow the fitting manufacturer's rear-clearance and ventilation requirements, and switch off the power and let the lamp cool fully before handling.
Key Features
- MR16 lamp with a xenon and halogen gas mixture.
- Dichroic reflector and glass-covered face.
- UV Stop quartz capsule.
- Strengthened filament.
- 36° beam with 275-lumen output.
- 3000K warm white light.
- 12V operation and actual 20W power consumption.
- Dimmable with compatible controls and a dimmable 12V supply.
- 2,000-hour rated average life.

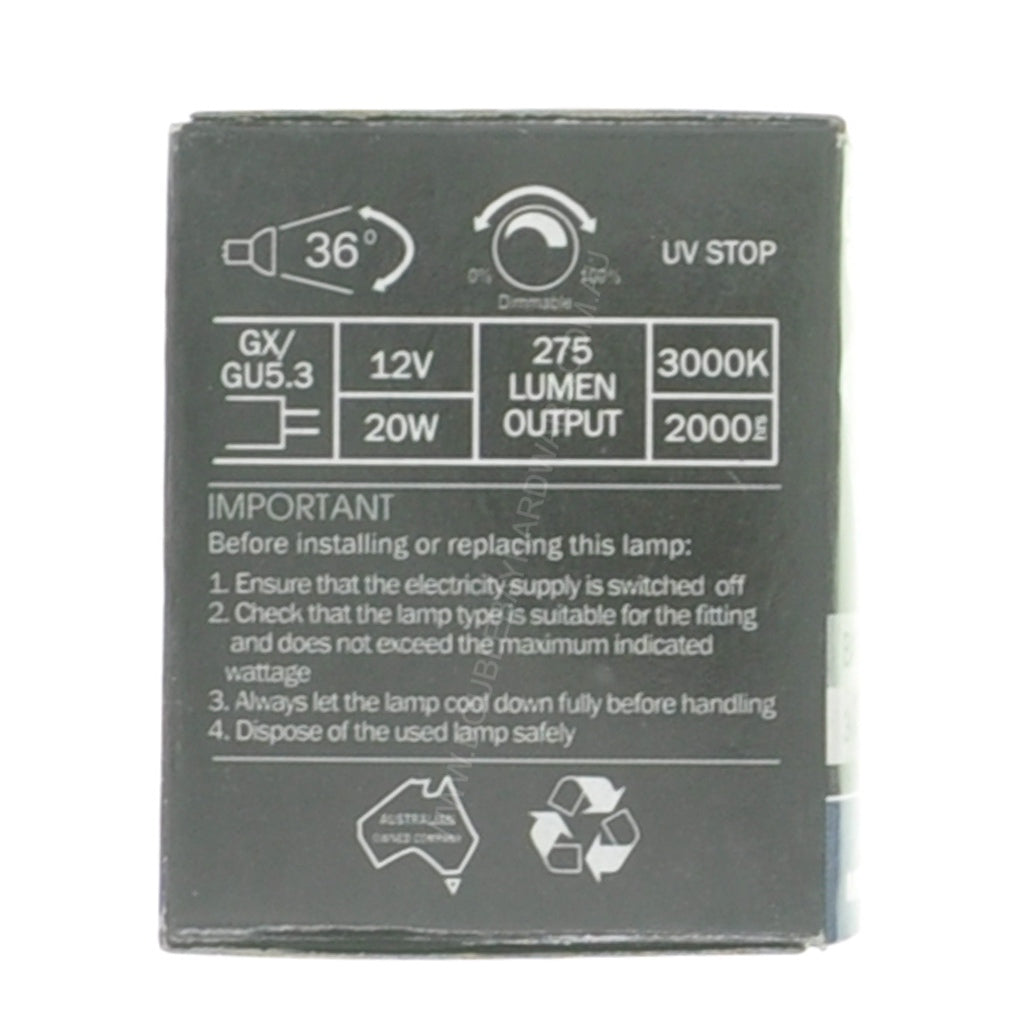

Specifications
- Brand: Crompton
- Technology: Xenon halogen
- Shape: MR16
- Base: GU5.3
- Voltage: 12V
- Wattage: 20W
- Colour temperature: 3000K Warm White
- Light output: 275lm
- Beam angle: 36°
- Reflector: Dichroic
- Face: Glass covered
- UV protection: UV Stop
- Rated average life: 2,000 hours
- Dimmable: Yes
- Operating position: Universal
- Diameter: 51mm
- Length: 45mm
-
Light Bulb Shape
-
Light Bulb Type
-
Fitting/Base
-
Wattage
-
Voltage
-
Colour Temperature
-
Lumen Output
-
Beam Angle
-
Rated Average Life
-
Dimmable
-
Product Diameter/Thickness
-
Product Length
-
