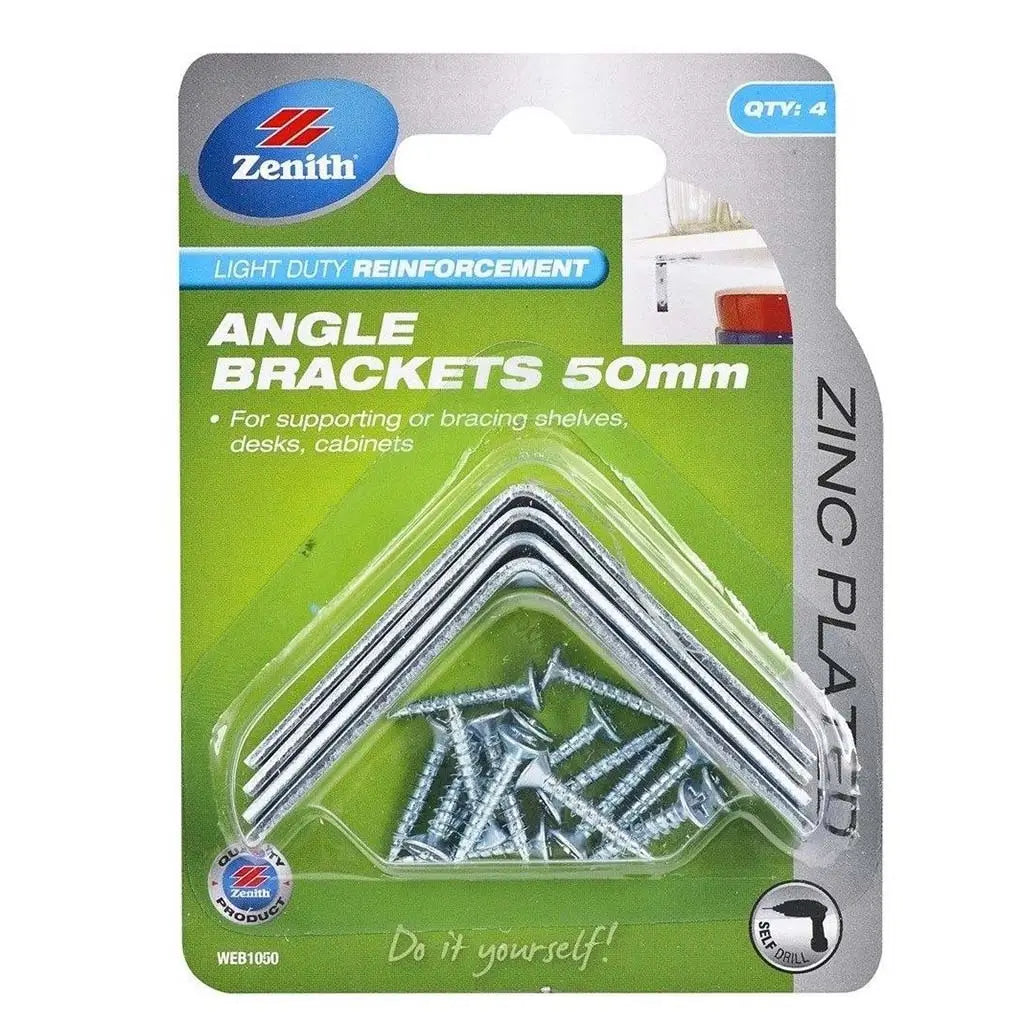

Zenith 13X50mm Light Duty Reinforcement Angle Brackets Zinc WEB1050

Reinforce and support shelves, desks, cabinets, and timber frames with these versatile Zenith light duty angle brackets. Measuring 13x50x1.8mm and finished in corrosion-resistant zinc, these brackets deliver reliable strength for everyday residential and light commercial applications. Each pack includes 4 brackets with matching screws, making them ideal for quick repairs, furniture assembly, or shelf installations requiring extended reach.

Key Features:

• Zinc-plated finish for rust resistance and durability
• Extended 13x50x1.8mm dimensions for greater support span
• 4-piece pack with screws included
• Internal strengthening rib for added load support
• Suitable for timber, shelving, and cabinet reinforcement

Specifications:

• Dimensions: 13mm x 50mm x 1.8mm
• Material: Zinc-plated steel
• Pack quantity: 4 brackets
• SKU: WEB1050
• Barcode: 9310086648500

Directions:

• Position bracket in location to check that unit will function as intended.
• Fasten with screws provided using a No.2 Philips head insert bit at 1000rpm.
• Alternatively you can use a standard screwdriver.
• Mark holes for screws, drill pilot holes using a 2.5mm drill bit and fasten using screws provided and a Philips head screwdriver.
• Ensure that the bracket is square when fixing.

Note:

• If bracket is being used for shelves, screw brackets into wall, then fasten shelf onto bracket.
• When brackets are to be used as an external reinforcement on timber, allowance needs to be made for the internal strengthening RIB.
• The bracket is not countersunk on the external side so raised head screws are recommended for a neat finish.
• The use of longer screws is recommended where brackets may be subject to abnormal/heavy loads.
• Screws supplied are suitable for fixing brackets to timber.
• For fixing to other surfaces, use equivalent fixings and suitable drill.
• Due to possible differences in applications, the installer must make their own evaluation of the suitability and strength of the bracket for their specific application.
