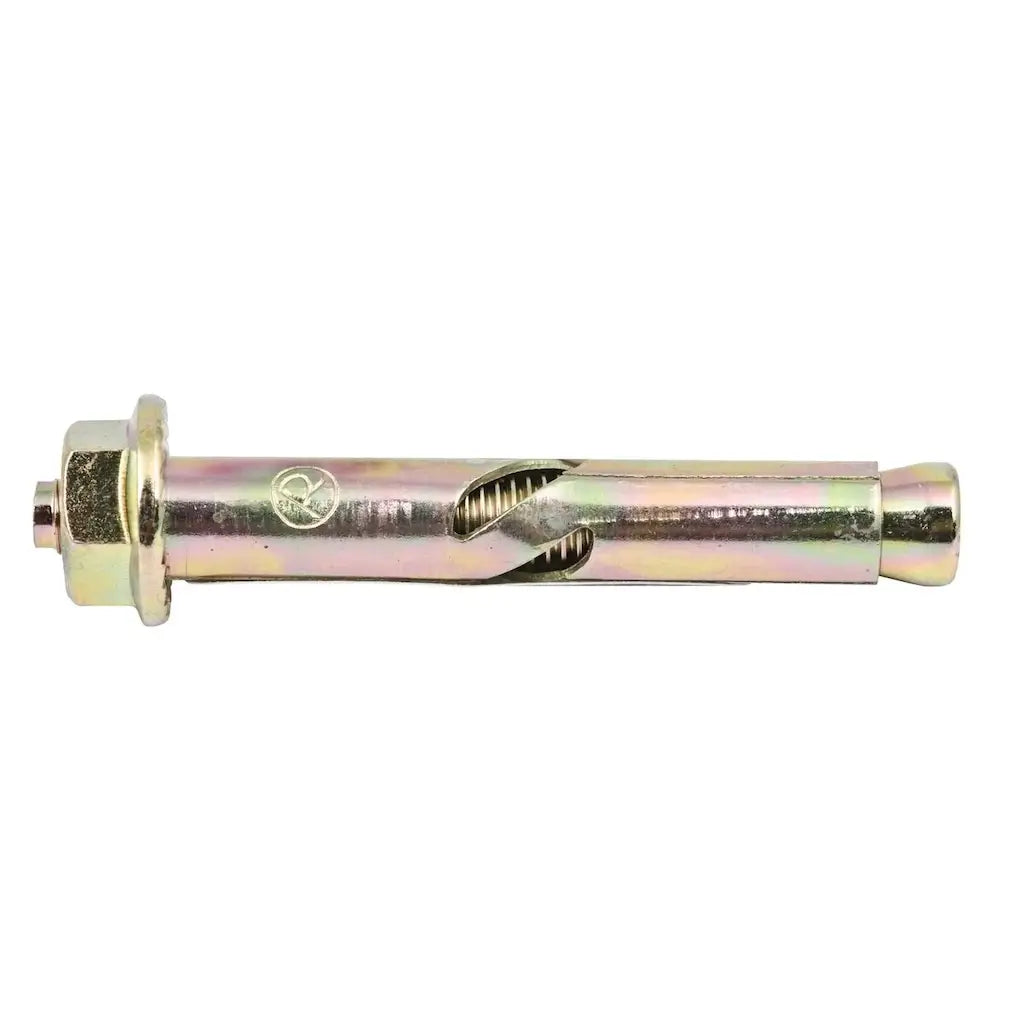

Ramset 6X40mm Anchor Dynabolt Plus Hex Head DP06040

The Ramset DynaBolt Plus Sleeve Anchor delivers reliable medium-duty anchoring performance with torque-controlled expansion technology. Engineered with an integrated pull-down section, this anchor is designed for secure fastening of timber and steel fixtures to concrete, brick or block, providing professional-grade holding power for a wide range of construction and installation applications.

Measuring 6mm in diameter and 40mm in length with a hex head design and gold passivated finish, this anchor features a patented expansion sleeve that closes gaps of up to 5mm. The innovative pull-down mechanism induces clamp load on the fixture, delivering improved security and stability. The versatile hex head design allows for easy installation with standard tools, making it ideal for brackets, fixtures, equipment mounting and light to medium-duty structural applications.

Key Features:

• Torque-controlled expansion for consistent, reliable performance
• Patented expansion sleeve closes gaps up to 5mm
• Integrated pull-down section induces clamp load for improved security
• Suitable for timber and steel fixtures to concrete, brick or block
• Hex head design for easy installation with standard tools
• Gold passivated, zinc plated carbon steel construction
• Medium-duty anchoring for versatile applications

Specifications:

• Diameter: 6mm
• Length: 40mm
• Head Type: Hex Head
• Finish: Gold Passivated
• Material: Gold Passivated, Zinc Plated, Carbon Steel
• Drill Size: 6mm
• Suitable Substrates: Concrete, brick, block
• Product Code: DP06040
