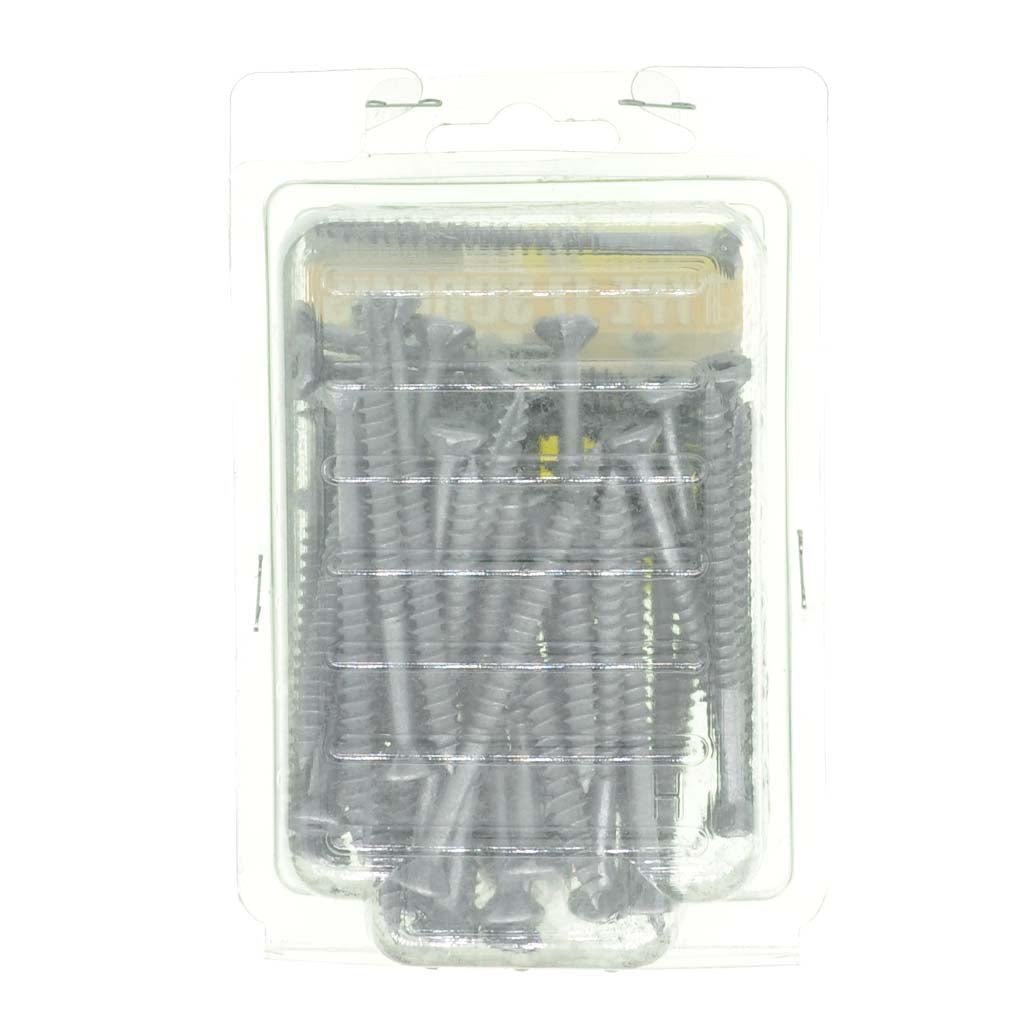

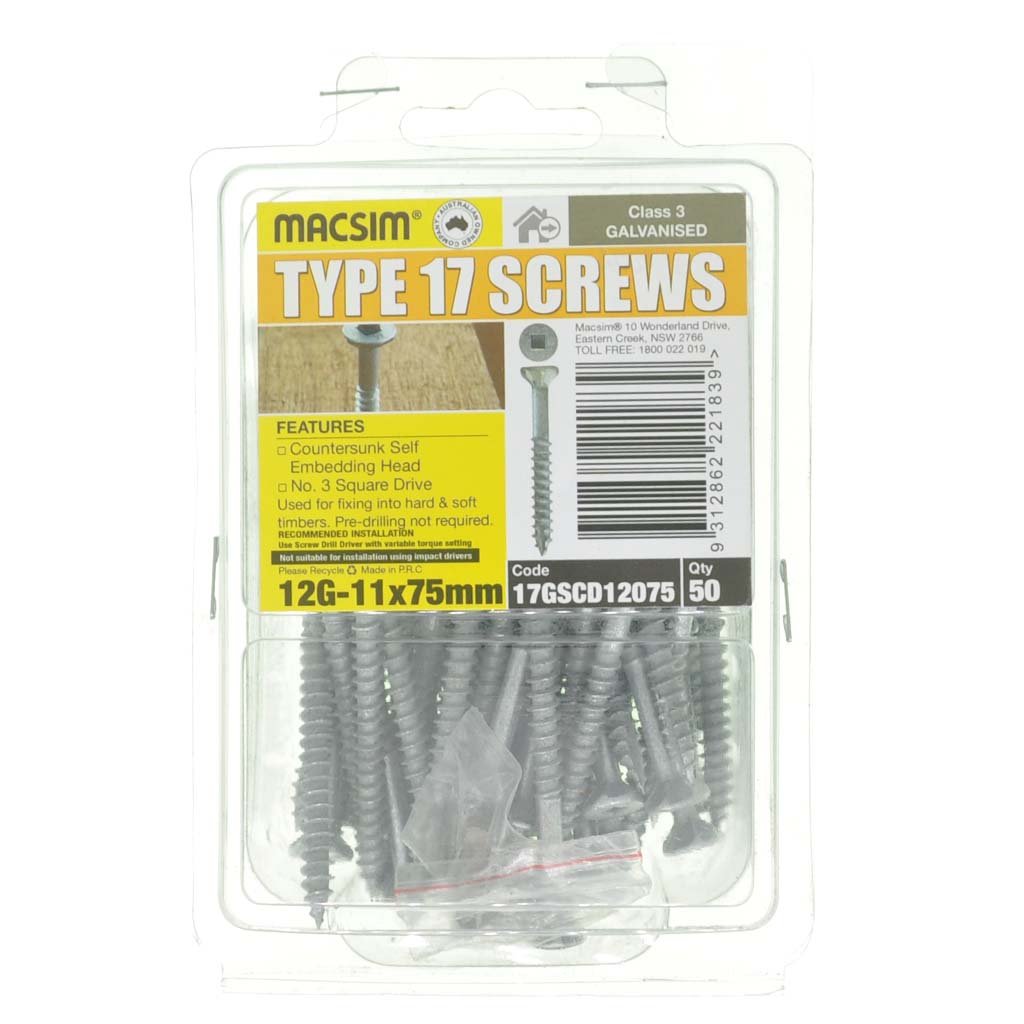

MACSIM 12G-11x75mm TYPE 17 Screw Square Galvanised 50Pcs 17GSCD12075

The MACSIM 12G-11x75mm TYPE 17 Screw delivers professional-grade fastening specifically engineered for metal-to-timber applications. Featuring the innovative Type 17 self-drilling point, these screws eliminate the need for pre-drilling, cutting their own pilot hole as they're driven through metal and into timber substrates—saving significant time and effort on installation projects.

Designed with a countersunk self-embedding head that sits flush with the surface, these screws create a clean, streamlined finish ideal for metal roofing, cladding, batten installation, and structural steel-to-timber connections. The Class 3 galvanised finish provides superior corrosion resistance for outdoor and coastal applications, ensuring long-lasting performance in harsh Australian conditions. The square drive (#3) offers excellent torque transfer and reduced cam-out compared to Phillips drives, making installation faster and more reliable with power tools. At 75mm in length with 12-gauge thickness, these screws deliver the strength and penetration needed for demanding structural applications.

Key Features:

• Type 17 self-drilling point eliminates pre-drilling through metal
• Countersunk self-embedding head for flush finish
• Class 3 galvanised coating for superior corrosion resistance
• Square drive (#3) for excellent torque transfer and reduced cam-out
• Ideal for metal roofing, cladding, and batten installation
• 12-gauge thickness for structural strength
• 75mm length for deep penetration into timber
• 50-piece pack for multiple applications

Specifications:

• Size: 12G-11 x 75mm
• Head Type: Countersunk Self-Embedding
• Drive Type: Square Drive #3
• Point Type: Type 17 Self-Drilling
• Thread: 11 TPI (Threads Per Inch)
• Finish: Class 3 Galvanised
• Quantity: 50 pieces per pack
• SKU: 17GSCD12075
