Crompton  |  SKU: 26272

Crompton XL-LED Performance Gimbal Kit 90mm Cut-Out 12W W/W 26272

$109.00
Tax included Shipping calculated at checkout.

EOFY 2024 huge sale is on now.

Check it now.

  • This product does not supplied with retail box.
  • You will receive parts only.



Descriptions:

  • Allows the PERFORMANCE LED lamp housing to be secured on a tilt ensuring a safe installation. The ring also prevents the fitting from being retrofitted with a standard MR16 halogen lamp. This is a significant advantage for use in buildings seeking a full Energy Star Rating.
  • The XL-LED specially designed driver incorporates a Thermal Wind Back System.
  • The driver monitors the LED case temperature and automatically reduces the power to protect the lifetime of the LED. Should the maximum surface temperature reach 90°C, the fitting will start to “wind back” the LED, resulting in automatic dimming in small increments rather than completely shutting down the LED light source.
  • Lighting Council of Australia launched their SSL (Solid State Lighting) quality scheme in 2010 to assist the market with identifying LED products which meet guaranteed performance criteria, accredited to strict test parameters. The Crompton XL-LED was one of the first fittings registered under the SSL Quality Scheme.
  • The LED Controller can be used on a dimmer switch or dimming circuit of either leading or trailing edge.
  • The light output is similar to most wide beam FNV MR16 halogen lamp with a 55° beam spread, and has energy saving of up to 70% when compared to a standard MR16 50W halogen lamp.
  • Crompton XL-LED Downlights are C-Bus compatible.



Features:

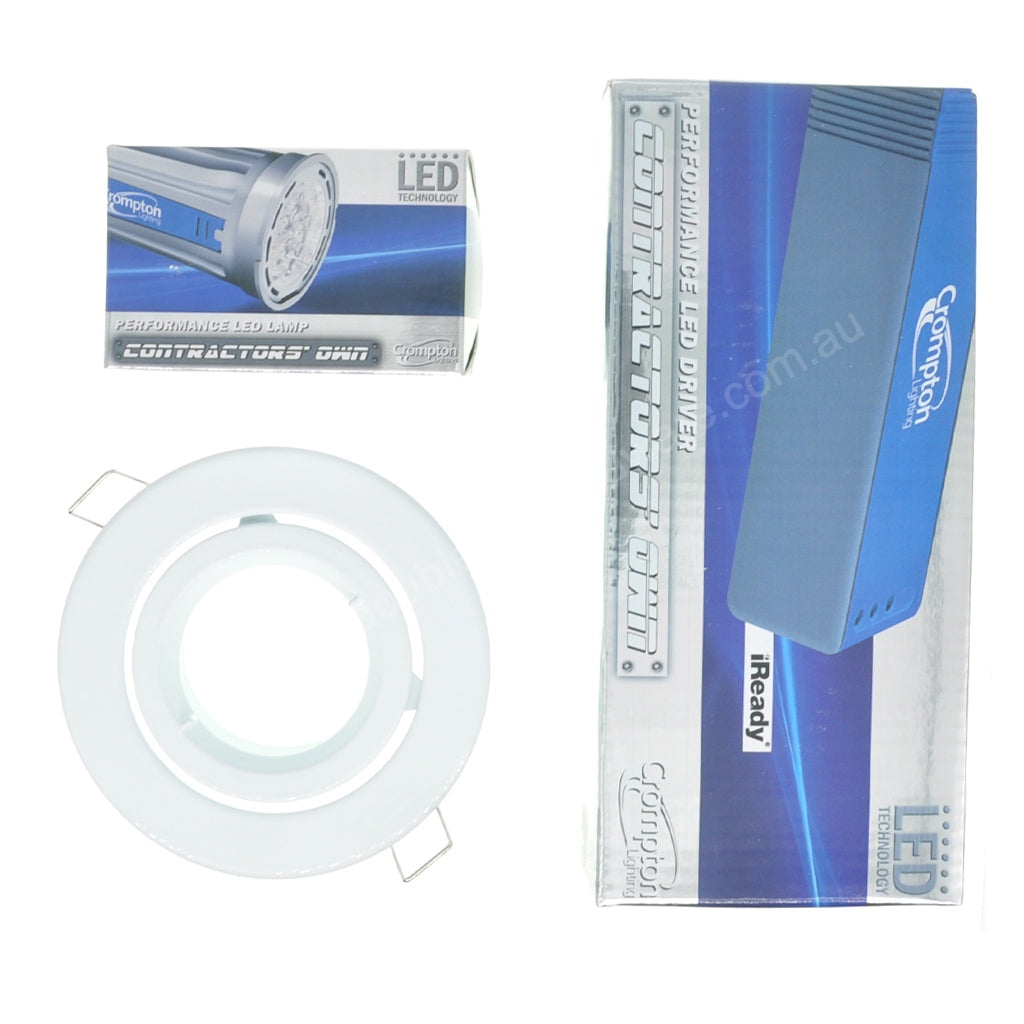

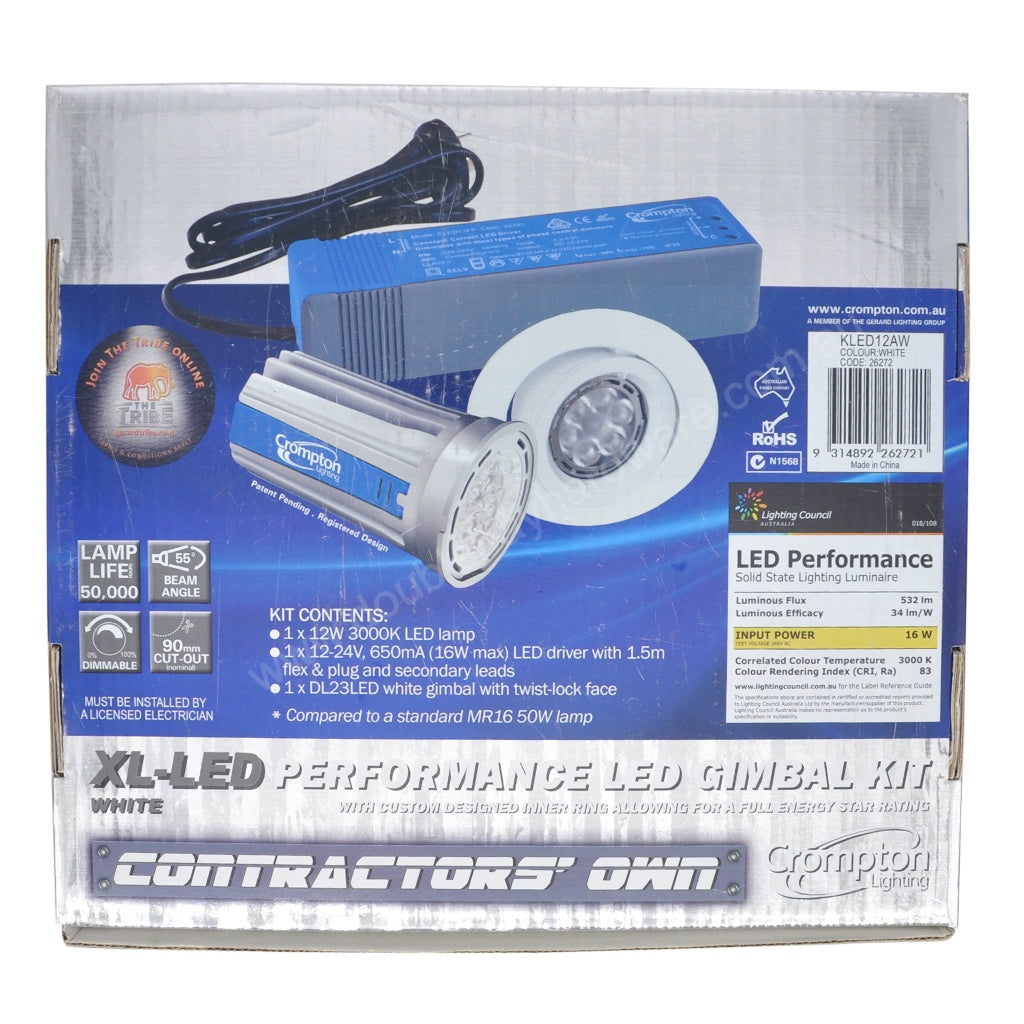

  • Contents 1 of 12W LED Lamp.
  • Contents 1 of 12V-24V, 650mA LED driver with 1.5m flex & plug and secondary leads.
  • Contents 1 white colour cover with twist-lock face.
  • C-Bus compatible.
  • Fully dimmable with leading or trailing edge dimmers.



Specifications:

  • Supply Voltage: 220-240V AC
  • Supply Frequency: 50-60Hz
  • Supply Current: 100mA
  • Power Factor: 0.95 undimmed
  • Total Input Power: 16W max
  • Secondary Output Voltage: 12-24V DC
  • Secondary Output Current: 650mA regulated
  • Lamp Power: 12W
  • Lamp Colour Temperature: 3000K
  • Lumen Output: 700lm
  • CRI: 85
  • Beam Angle: 55 degree
  • Lamp Life: 50000H
  • Dimmable
  • Cur-out: 90mm
